Intro
In 2026, optical networking has become an indispensable part of enterprise, campus, industrial, and telecom infrastructures. As organizations adopt Wi-Fi 7, 10G/25G uplinks, long-distance CCTV deployments, and fiber-rich campus backbones, media converters play a vital role by extending copper-based networks over fiber.
Media converters bridge electrical and optical domains, enabling:
- Copper ↔ fiber conversion
- Multimode ↔ single-mode fiber conversion
- Wavelength conversion (BiDi, CWDM, DWDM)
- Short-range networks to connect with long-range optical links
Despite their simple appearance, choosing the correct type-single-mode vs multimode media converter-has a significant impact on performance, stability, and upgrade capability.
This 2026 expert guide will explain:
- What media converters actually do (OEO conversion)
- Modern types of media converters
- Differences between single-mode & multimode media converters
- Real engineering insights: IL budget, modal dispersion, laser type, speed limits
- 2026 application scenarios
- Decision-making framework
- 12 advanced FAQs
Overview of Media Converters
What is a Media Converter?

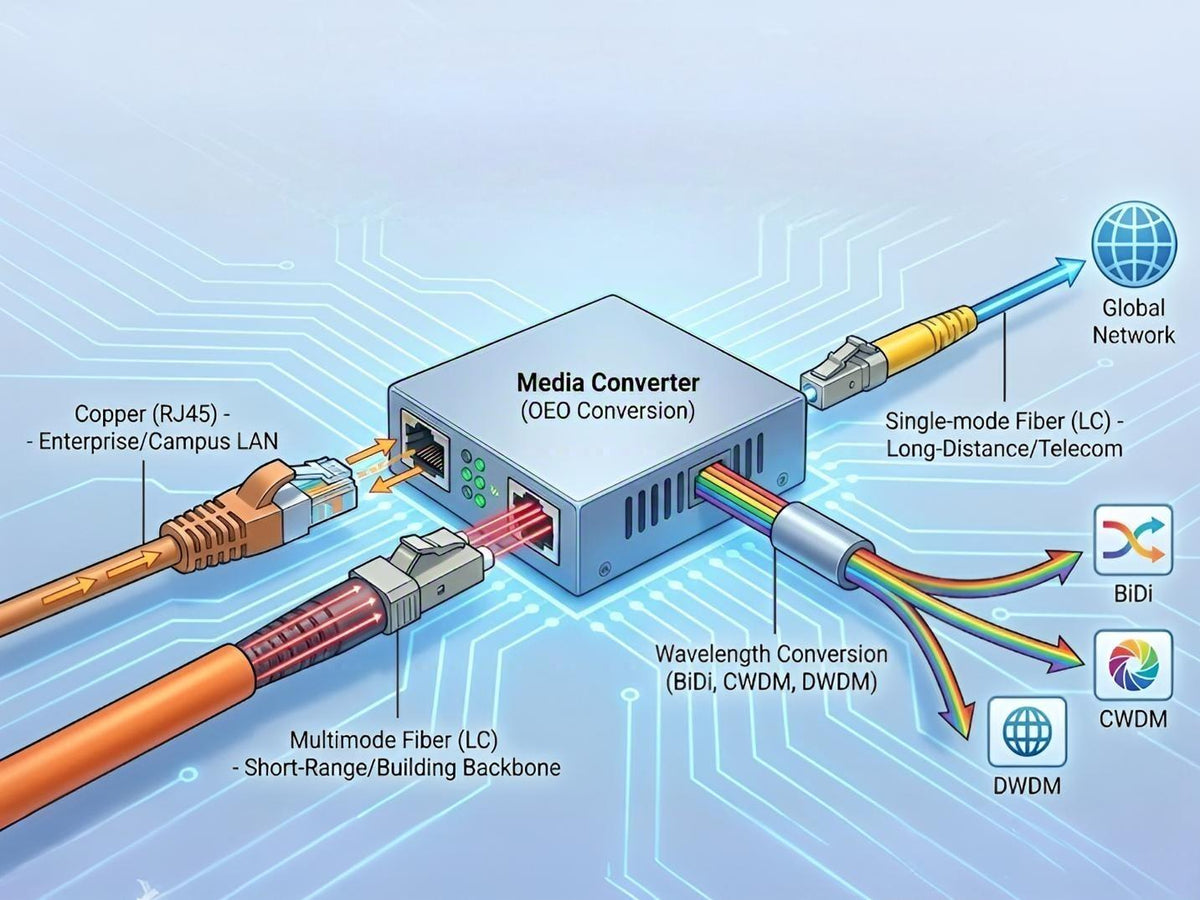

A media converter is an OEO (Optical-Electrical-Optical) device that operates at Layer 1/Layer 2 of the OSI model. Its primary functions include:
1. Copper ↔ Fiber Conversion
- Ethernet electrical signals (RJ45) ↔ optical signals (LC/MPO)
2. Fiber Type Conversion
- Multimode ↔ Single-mode
- Dual-fiber ↔ Single-fiber (BiDi)
3. Wavelength Conversion
- 1310 ↔ 1550 nm
- CWDM / DWDM channels
4. Media Extension
- Extending 1G/2.5G/10G/25G Ethernet beyond copper limits (100m)
5. Link Protection Features
- Link Fault Pass-through (LFP)
- Auto-negotiation / Force mode
- Loopback test (managed models)
Media converters have become essential in:
- Wi-Fi AP uplink extensions
- CCTV backbones
- Campus building interconnects
- Industrial fiber deployments
- Metro/telecom long-haul networks
Types of Media Converters
Media converters now come in many forms-not just "single-mode vs multimode." Below is the complete 2026 classification.
1. Copper ↔ Fiber Media Converters
- 1G（legacy）
- 2.5G（Wi-Fi 6 AP）
- 10G（Wi-Fi 7 AP & access switches）
- 25G（2026 new trend for campus uplinks）
2. Single-mode ↔ Multimode (Fiber Type Converters)
Used for:
- Brownfield campus networks (MMF → SMF upgrades)
- Mixed-fiber environments
3. Dual-Fiber vs Single-Fiber (BiDi) Media Converters
Dual-Fiber (Duplex LC)
- One TX fiber, one RX fiber
Single-Fiber (BiDi)
- TX & RX on one fiber (1310/1550 nm pair)
- Saves 50% fiber resources
- Very popular in CCTV & enterprise building interconnects
WDM / CWDM / DWDM Media Converters
WDM:
Simple two-wavelength pair, 20-40 km
CWDM:
18 wavelengths, up to 40-80 km
DWDM:
Up to 120 km+ with EDFAs; telecom-grade
Used for:
- Metro networks
- FTTx
- Carrier enterprise services
Managed vs Unmanaged Media Converters
Managed
- VLAN tagging
- Link Fault Pass-through (LFP)
- SNMP monitoring
- Loopback diagnostics
- Bandwidth control
Unmanaged
- Plug-and-play
- Most common for SMB environments
Industrial Media Converters
Required for:
- Harsh environments
- Outdoor cabinets
- Smart city infrastructure
Features:
- -40°C to +85°C
- Shock & vibration resistance
- 6kV surge protection
- DIN-rail mounting
PoE Fiber Media Converters (Trendy for 2026)
These convert:
- Fiber uplink → RJ45 PoE/PoE+/PoE++ output
Ideal for:
- Wi-Fi 7 outdoor AP
- PTZ cameras
- Remote IoT devices
Single-mode Media Converters (SMF Converters) in Detail
Single-mode media converters operate with OS2 single-mode fiber, featuring:
1. Fiber Type
- OS2 (ITU-T G.652D / G.657A2)
- Core diameter: 9 µm
2. Typical Wavelengths
- 1310 nm (short/medium reach)
- 1550 nm (long reach)
3. TX Laser Types
- DFB：Medium/long distances（10-40 km）
- EML：High-power long reach（40-120 km）
- FP Laser：Budget option for short SMF links
4. Supported Distances
Dependant on SFP/SFP+ inserted:
| Module | Distance | Use Case |
| LX (1G) | 10 km | SMB/Campus |
| EX (1G) | 40 km | CCTV/ISP |
| ZX (1G) | 80 km | Metro |
| LR (10G) | 10 km | Wi-Fi 7 uplink |
| ER (10G) | 40 km | MAN/WAN |
| LR (25G) | 10 km | 25G access uplinks |
| ER (25G) | 40 km | Telecom aggregation |
5. Ideal Use Cases
- Long-distance campus building connectivity
- Industrial or outdoor CCTV networks
- Enterprise backbone/aggregation
- Retail campuses and warehouses
- Metro networks and ISP transport
Multimode Media Converters (MMF Converters) in Detail
MMF converters operate with OM3/OM4/OM5 fibers.
1. Fiber Type
- OM3 - 300 m @ 10G
- OM4 - 400-500 m @ 10G
- OM5 - supports SWDM (850-950 nm)
2. Wavelength
- 850 nm (VCSEL lasers)
3. Typical Distances
| Speed | OM3 | OM4 | OM5 |
| 1G SX | 550 m | 550 m | 550 m |
| 10G SR | 300 m | 400 m | 400 m |
| 25G SR | 70 m | 100 m | 100 m |
4. Ideal Use Cases
- Data center TOR ↔ servers
- Short-distance enterprise links
- Legacy MMF campus fibers
- In-building LAN/MDF/IDF
Single-mode vs Multimode Media Converters
| Dimension | Single-mode Media Converter (SMF) | Multimode Media Converter (MMF) |
| Fiber Type | OS2 (G.652D / G.657A1/A2) | OM3 / OM4 / OM5 |
| Core Diameter | ~9 µm | 50 µm / 62.5 µm |
| Wavelengths | 1310 nm / 1550 nm | 850 nm |
| Laser Type | DFB / EML / FP | VCSEL |
| Dispersion | Very low → stable long-distance | High modal dispersion → distance limited |
| Insertion-Loss Budget (IL) | High budget; supports multi-ODF chains | Lower budget; sensitive to connector count |
| Typical Distances | 10-120 km (depends on LR/ER/ZX SFP) | 70-550 m (depends on OM fiber & speed) |
| Supported Speeds (2026) | 1G / 10G / 25G / long-reach | 1G / 10G / short-reach only |
| BiDi (Single-Fiber) Support | Yes (1310/1550 nm pairs) | Rare / Practically not used |
| CWDM / DWDM Compatibility | Fully supported (metro/ISP use) | Not used in MMF links |
| Fiber Resource Efficiency | Excellent with BiDi | Requires duplex fiber |
| Environmental Adaptability | Strong (outdoor/industrial ready) | Indoor LAN / in-building DC only |
| Upgrade Path | Supports future 25G/50G/100G uplinks | Not scalable beyond 10G in LC form |
| Cost Level | Higher (laser/SMF module cost) | Lower (VCSEL modules cheaper) |
| Ideal Use Cases | Campus, MAN/WAN, CCTV, industrial, long-distance, Wi-Fi 7 uplinks | Data center row-to-row, short-range LAN, legacy MMF infrastructure |
One-sentence summary:
SMF media converters = long-distance, high-performance, future-proof
MMF media converters = short-range, cost-effective, simple deployments
Engineering Insights (2026 Version)
1. Why MMF cannot support long distance?
Modal dispersion grows exponentially with distance.
2. Why 25G multimode media converters are rare?
Because 25G signals have 40% shorter bit periods, leaving almost no dispersion budget.
3. Why BiDi matters for campuses and CCTV?
Single-fiber transmission saves 50% fiber resources and simplifies ODF planning.
4. Why single-mode is becoming cheaper?
OS2 fiber cost has dropped significantly due to FTTx volume.
5. Why SMF is preferred for Wi-Fi 7 (10G) uplinks?
Wi-Fi 7 APs produce >10 Gbps throughput → 10G LR over SMF becomes standard.
Application Scenarios (2026 Updated)
1. Enterprise / Campus Networks
- Connect buildings over 300m apart
- Extend copper links to 10G/25G optical uplinks
- Connect multiple IDF/MDF rooms
2. Data Centers
- Short distance (MMF), medium (SMF)
- Migrations from 10G → 25G SMF uplinks
- Optimize ODF trunking
3. CCTV & Smart City
- Long-distance camera backhaul
- Fiber-to-camera poles
- BiDi media converters to reduce fiber usage
4. Industrial Networks
- Harsh temperature
- DIN-rail mounting
- High EMI immunity
- -40 to +85°C optical transceivers
5. ISP / Metro / FTTx
- CWDM & DWDM for wavelength multiplexing
- Long-haul SMF-based transport over OEO conversion
How to Choose: 2026 Media Converter Decision Framework
IF distance < 300m: Choose MMF media converter (OM3/OM4)
ELSE IF 300m-2km: Choose SMF LR-Lite or SMF BiDi converter
ELSE IF 2-40km: Choose SMF LR/ER converter
ELSE IF40-120km: Choose ZX / CWDM converter
ELSE: Choose DWDM converter for metro long-haul
Additional considerations:
- Fiber resources limited? → BiDi
- Future-proofing? → SMF
- Harsh outdoor? → Industrial SMF converter
- Wi-Fi 7 uplink? → 10G SMF converter
- CCTV? → SMF BiDi
Why Choose Network-Switch.com for Media Converters?
Network-Switch.com provides:
- Full series: 1G/2.5G/10G/25G media converters
- Fiber types: SMF, MMF, BiDi, CWDM, DWDM
- Multi-brand compatibility: Cisco, Huawei, Ruijie, H3C, NS
- Industrial-grade options: -40°C~+85°C, IP-rated, DIN-rail
- Expert (CCIE/HCIE/H3CIE) consultation for fiber design
- Integrated solutions for Wi-Fi 7, CCTV, industrial networks, and campus backbones
- Global rapid delivery and long-term support
FAQs
Q1: Why can't multimode media converters operate beyond 550 meters even on OM5 fiber?
A: Modal dispersion accumulates beyond a few hundred meters, causing inter-symbol interference at high bit rates. Even OM5 cannot overcome physical modal limitations.
Q2: Can I use a single-mode media converter with multimode fiber if both sides have LC connectors?
A: No. Connectors matching does not mean optical-mode matching. SMF lasers cannot operate in 50 µm MMF cores.
Q3: How does Link Fault Pass-through (LFP) improve troubleshooting?
A: LFP ensures that when the fiber link fails, the copper port immediately drops, preventing silent failures and making fault domains easier to isolate.
Q4: Why are 25G multimode media converters uncommon?
A: At 25G, modal dispersion and IL budget constraints make MMF reach extremely short (<100 m). SMF LR SFP28 is more cost-effective and widely compatible.
Q5: Can media converters carry VLAN-tagged traffic transparently?
A: Yes-L1/L2 media converters are VLAN agnostic and forward tagged frames without modification.
Q6: When should I use BiDi media converters instead of duplex?
A: When fiber is limited or trenching is costly. BiDi pairs reduce fiber usage by 50% using two opposite wavelengths.
Q7: Can a 10G media converter connect a 1G copper port to 10G fiber?
A: Usually no. Media converters do not perform speed conversion unless explicitly designed as rate converters.
Q8: Are PoE fiber media converters safe for powering Wi-Fi 7 outdoor APs?
A: Yes-if using PoE++ (90W) industrial models with proper surge protection and temperature ratings.
Q9: Do industrial media converters help with EMI issues?
A: Yes. Fiber is immune to EMI, and industrial converters use shielded enclosures and isolated power designs.
Q10: What is the IL budget required when passing through multiple ODF panels?
A: Typical 10G SMF IL budget is ~6 dB. Every LC connection adds ~0.2-0.35 dB. Exceeding budget results in link flaps and errors.
Q11: Are CWDM/DWDM media converters still relevant in 2026?
A: Yes-particularly for ISPs and enterprises with limited fiber but needing multiple wavelengths for long-haul traffic.
Q12: Should I choose a media converter or directly use a fiber switch?
A: Use a fiber switch when scaling >8 links or needing VLAN/LACP/Spanning Tree.
Use media converters for isolated, point-to-point, low-cost fiber extensions.
Conclusion
Single-mode and multimode media converters may appear similar, but their capabilities differ significantly in real-world deployment.
- Single-mode converters excel in long-distance, high-bandwidth, and future-proof networks.
- Multimode converters are cost-effective for short-distance, in-building links.
- 2026 trends (Wi-Fi 7 uplinks, 10G/25G fiber, industrial deployments) further accelerate the adoption of single-mode solutions.
Choosing the right converter requires evaluating distance, fiber type, speed, environment, and upgrade plans. With Network-Switch.com's expert-supported portfolio, you can deploy stable, scalable, and efficient fiber networks for any scenario.
