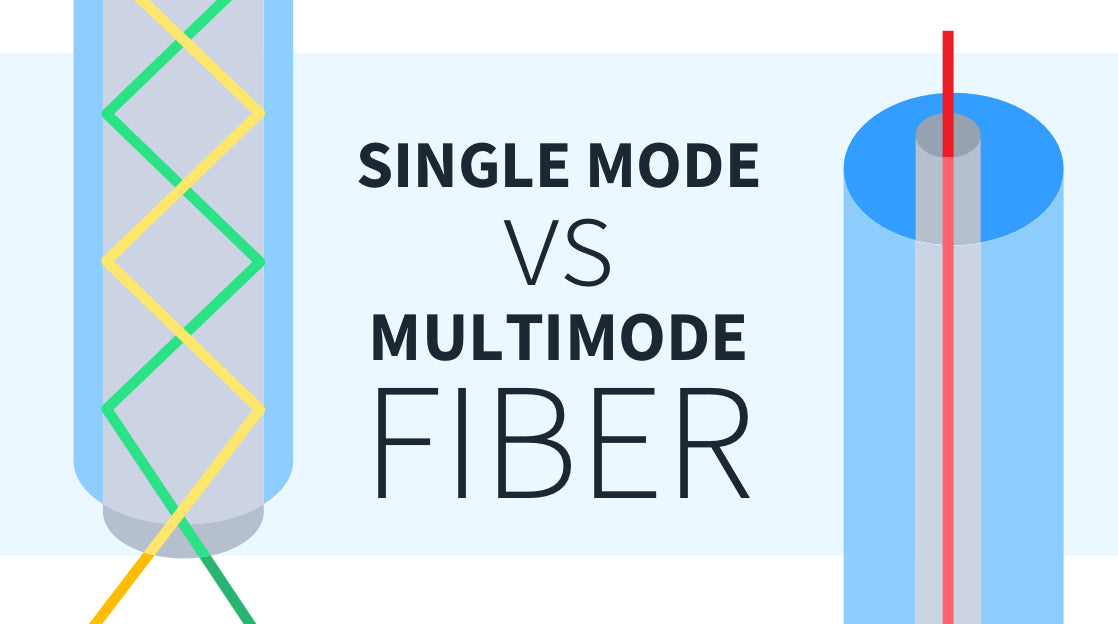

Single-Mode vs Multimode Fiber in 2025: Distances, Cost & Selection

author
Network Switches
IT Hardware Experts
author https://network-switch.com/pages/about-us

Choosing between single-mode (SMF/OS2) and multimode (MMF/OM3–OM5) fiber is more than a cabling preference, it determines your reachable distance, optics cost, upgrade path, and even day-to-day operability (polarity, cleaning, testing).

The differences are well known in theory, but real-world projects still stumble on naming inconsistencies, ambiguous reach tables, and hidden losses from connectors, cassettes, and bends.

This guide turns the SMF vs MMF decision into a practical workflow. We start with correctly named standards and a side-by-side overview, then move into module × fiber reach tables, a 2-minute link-budget method, and the MPO/MTP polarity basics you’ll actually use.

From there, we cover jacket ratings, bend-insensitive options, and a 3-year TCO lens so you can decide whether to evolve MMF or standardize on OS2.

TL;DR - Pick This, Not That

Key Differences at a Glance

Attribute Single-Mode (OS1/OS2) Multimode (OM1–OM5)
Core / Cladding ~9/125 μm 50/125 μm (OM2–OM5), 62.5/125 μm (OM1)
Light Source Laser (LD) @ 1310/1550 nm LED/VCSEL @ 850/953/1300 nm
Bandwidth Practically “unlimited” per fiber mode Limited by modal dispersion; OM grade sets EMB
Sheath Color (TIA-598-C) Yellow Orange/Aqua (OM3/OM4), Lime-green (OM5)
Typical Reach Long (km-scale) Short/medium (tens–hundreds of meters)
Transceiver Cost Higher (LR/DR/FR/LR4, CWDM4) Lower (SX/SR/SR4)
Cabling Cost Lower per meter Higher per meter (laser-optimized MMF)
Upgrade Path Easy to scale to 100G/400G/800G over SMF Great for dense short-reach; parallel optics or SWDM for higher rates
core diameters of optical cables

The Correct Names (Stop the Typos!)

Wrong Right
1000BASE-LX 1000BASE-LX
10Gb Base SE-SR 10GBASE-SR
25Gb Base SR-S 25GBASE-SR
40Gb Base SR4 40GBASE-SR4
100Gb Base SR10/SR4 100GBASE-SR10 / 100GBASE-SR4

Fiber Types & Bandwidth Grades

Fiber Class Core/Clad Primary Wavelengths Effective Modal Bandwidth (EMB)* Jacket Color (premises) Typical Role
OS2 9/125 1310, 1550 nm N/A (single-mode) Yellow Long reach (campus/metro/DC interconnect)
OM3 50/125 850 nm 2000 MHz·km @ 850 nm Aqua 10G up to 300 m; 40/100G short reach
OM4 50/125 850 nm 4700 MHz·km @ 850 nm Aqua 10G up to 400 m; better margin at 25/40/100G
OM5 (WBMMF) 50/125 850–953 nm (SWDM) 4700 @ 850 nm & 2470 @ 953 nm Lime-green Short-wave WDM over MMF; niche but useful for dense short-reach
OM1 to OM5 Optical Cable

What You Can Plan For?

Ethernet Rate & Optic Connector OM3 OM4 OM5 OS2 (G.652)
10GBASE-SR (SFP-10G-SR) LC 300 m 400 m ~400 m (same as OM4)
25GBASE-SR (SFP-25G-SR-S) LC 70 m 100 m ~100 m (same as OM4)
40GBASE-SR4 (QSFP-40G-SR4) MPO-12 ~100 m ~150 m ~150 m
100GBASE-SR4 (QSFP-100G-SR4-S) MPO-12 70 m 100 m ~100 m
10/25GBASE-LR LC 10 km
100GBASE-LR4 LC 10 km

Note: OM5 does not extend SR/SR4 reach at 850 nm; its advantage shows with SWDM transceivers that use multiple wavelengths (e.g., 850–953 nm).

Basics You’ll Actually Use

fiber optic loss calculation

Formula (simplified):
Total Loss (dB) = Fiber Attenuation × Distance + Connector Loss × Count + Splice Loss × Count + Safety Margin

Pass condition:
Tx Min Power – Rx Sensitivity ≥ Total Loss

Worked Examples

Scenario Assumptions Total Loss Check
10 km OS2, 10GBASE-LR 0.3 dB/km @1310 nm; 2 LC connectors @0.5 dB ea; 2 splices @0.1 dB ea; 3 dB margin 0.3×10 + 0.5×2 + 0.1×2 + 3 = 7.2 dB If module link budget ≥ 7.2 dB → PASS
150 m OM4, 100GBASE-SR4 3.0 dB/km @850 nm; 2 MPO mated pairs @0.35 dB ea; 2 dB margin 0.003×150 + 0.35×2 + 2 ≈ 2.7 dB If end-to-end IL ≤ 2.7 dB and Rx sens OK → PASS

Use DOM and a power meter to verify Tx/Rx levels; for faults and distance profiling, use OTDR.

MTP / MPO

  • Polarity Types: Type A / B / C define fiber-to-fiber mapping through trunks and cassettes. Plan polarity end-to-end before ordering.
  • Pinning: SR4 uses unpinned transceivers; trunks are typically pinned. Don’t mix without purpose.
  • 8 of 12 Fibers: SR4 uses 8 fibers in an MPO-12; 4 are dark (center pair).
  • Cleanliness Standard: Inspect/clean per IEC 61300-3-35:2022; MPO requires both large-field (ferrule) and small-field (individual fiber) inspection.

Cabling, Jackets & Bend Radius

Topic What to Specify Why It Matters
Plenum/Riser/LSZH CMP (plenum), CMR (riser), LSZH for people-dense spaces Code compliance & smoke/toxicity in events
Indoor vs Outdoor Tight-buffer indoor; loose-tube outdoor; armoring as needed Pulling tension, moisture, crush
Bend-Insensitive SMF G.657.A1/A2 (compatible with G.652.D) Tighter bends in dense trays, fewer macro-bends
Min Bend Radius Follow vendor spec (e.g., 10× cable OD typical) Avoid hidden insertion loss

Cost & TCO: One-and-Done SMF or Evolve MMF?

Short-reach, high-density racks: MMF SR/SR4 is generally lowest capex (cheaper optics), great for ≤100–150 m.
Long-reach or future 100G/400G scale-out: OS2 lets you standardize on LR/DR/FR/LR4/CWDM4 optics with simple duplex LC. Your fiber stays useful as speeds go up.

SMF VS MMF

3-Year TCO knobs to include in your analysis:

Bucket What to Count
Optics SR/SR4 vs LR/DR/FR/LR4/CWDM4; power draw (W/port)
Fiber Plant Trunks, cassettes, patch panels, jumpers, slack management
Install Labor pulls, terminations, test & certification
Change/Scale Adds/moves/changes, polarity headaches, parallel vs duplex
Risk Rework from mis-polarity, contamination, macro-bends

Scenario-Based Picks

Scenario Distance Recommendation Why
In-rack / row ≤ 30 m DAC/AOC or 10/25G SR Lowest power and capex
Row-to-row 70–150 m OM4 + 25G SR / 100G SR4 Sweet spot for MMF
New build, future-proof 100–400 m Consider OS2 + 100G DR/FR where optics cost is acceptable Duplex LC, simple growth path
Building-to-building / campus 1–40 km OS2 + LR/CWDM4/FR/LR4 Right tool for long reach

Brand & Model Mapping

The list below helps you replace prior brand mentions with Cisco / Huawei / Ruijie examples. Always confirm device/OS compatibility and DOM.

Speed / Type Cisco Huawei Ruijie Notes
1G SX (MMF) GLC-SX-MMD SFP-GE-SX-MM850* (Check RG Series) 850 nm, LC duplex, short reach
1G LX (SMF 10 km) GLC-LH-SMD SFP-GE-LX-SM1310 (Check RG Series) 1310 nm, LC duplex
10G SR (MMF) SFP-10G-SR 10GBASE-SR SFP+ XG-SFP-SR-MM850 (RG series) 300 m OM3 / 400 m OM4
10G LR (SMF 10 km) SFP-10G-LR 10GBASE-LR SFP+ XG-SFP-LR10-SM1310 (RG series) Duplex LC
25G SR (MMF) SFP-25G-SR-S 25GBASE-SR SFP28 (Check RG SFP28 SR) 70 m OM3 / 100 m OM4
40G SR4 (MMF) QSFP-40G-SR4 40GBASE-SR4 QSFP+ (Check RG QSFP+ SR4) MPO-12 parallel
40G LR4 (SMF 10 km) QSFP-40G-LR4 40GBASE-LR4 QSFP+ (Check RG QSFP+ LR4) LC duplex, LWDM/CWDM
100G SR4 (MMF) QSFP-100G-SR4-S QSFP28-100G-SR4 (Check RG QSFP28 SR4) 70 m OM3 / 100 m OM4
100G LR4 (SMF 10 km) QSFP-100G-LR4-S QSFP28-100G-LR4 (Check RG QSFP28 LR4) LC duplex

How to Choose?

  1. Distance first: ≤100 m (MMF sweet spot), 100–400 m (MMF or SMF), ≥1 km (SMF).
  2. Speed & form factor: Can you keep duplex LC? If you must go parallel, plan MPO polarity early.
  3. Installed base: Reuse OM3/OM4 where clean and certified; otherwise favor OS2 for longevity.
  4. TCO math: Count optics and plant changes (cassettes, trunks, labor).
  5. Operational ease: Duplex LC (SMF) simplifies growth; parallel MMF boosts density short-term.

Installation & Test Checklist

  • Correct naming & optics (SR/SR4 vs LR/DR/FR/LR4)
  • Fiber class & jacket (OM4/OM5 vs OS2; CMP/CMR/LSZH)
  • Connectors & polarity (LC/SC/MPO; Type A/B/C; pinned state)
  • Link budget with ≥3 dB margin
  • Clean/Inspect to IEC 61300-3-35:2022; certify IL/RL; keep reports
  • Spare jumpers and polarity-matched cassettes stocked
system cost of fiber optics

Glossary (Quick Hits)

  • EMB: Effective Modal Bandwidth (MMF bandwidth metric).
  • VCSEL: Laser source used at 850 nm for MMF.
  • SWDM: Short-wavelength WDM (850–953 nm) for MMF.
  • DR/FR/LR: 100G/400G SMF reaches (~500 m/2 km/10 km).
  • MPO Polarity: A/B/C mapping of fiber positions across trunks/cassettes.
  • DOM: Digital Optical Monitoring (readable Tx/Rx power, temp, etc.).

FAQs

Q1. Is OM5 “faster” than OM4 for 10/25/40/100G SR?
A: Not at 850 nm: SR/SR4 reach is essentially unchanged. OM5’s advantage appears with SWDM transceivers using 850–953 nm.

Q2. Can I mix SMF and MMF in one link?
A: Don’t directly mix; core sizes and launch conditions differ. Use media converters or mode conditioning patch cords only in specific cases (e.g., LX over MMF), then re-budget the link.

Q3. Does OM5 replace OS2?
A: No. OM5 is for short-reach with SWDM over MMF. OS2 is for long-reach and simpler duplex upgrades at 100G/400G/800G.

Q4. What about 100G DR/FR on SMF?
A: Great option for 100–500 m (DR/FR) over duplex LC; check switch support and FEC requirements.

Conclusion

Single-mode and multimode aren’t rivals—they’re tools with different sweet spots. Multimode (OM4/OM5 + SR/SR4) wins for dense, short-reach fabrics (≤150–400 m) with the lowest optics capex. Single-mode (OS2 + DR/FR/LR/LR4/CWDM4) wins for anything long-reach (≥1 km) and for designs that prize simple duplex growth to 100G/400G/800G without polarity headaches.

If you choose with distance first, validate with a link budget, and lock connector/polarity early, you’ll avoid 90% of real-world pitfalls.

Final Choice — Quick Reference

Your Situation Pick This Why It’s the Safe Bet
≤30 m within rack/row DAC/AOC or 10/25G SR on OM4 Lowest capex & power, zero MPO complexity
70–150 m row-to-row OM4 + SR / SR4 Mature ecosystem, predictable reach
150–400 m in new builds OS2 + 100G DR/FR (where supported) Duplex LC, easy upgrades to 200/400G
1–10 km campus/metro OS2 + LR/LR4 Right optics for true long reach
Unsure / mixed plant Standardize on OS2 where possible One fiber plant, many future speeds

Your Next 5 Steps

  1. Measure the longest path (including patching) and pick MMF vs SMF by distance.
  2. Select optics by connector strategy (duplex LC vs MPO) and verify switch support/FEC.
  3. Run a quick link budget with ≥3 dB margin; adjust jumpers/cassettes if tight.
  4. Freeze polarity & pinning in your BOM (Type A/B/C; pinned/unpinned).
  5. Plan inspection & test (IEC 61300-3-35, power meter/OTDR) before go-live.

If you’d like a sanity check on your distances, optics list (Cisco / Huawei / Ruijie), or MPO plan, the team at Network-Switch.com can review your link budget and produce a ready-to-order BOM.
