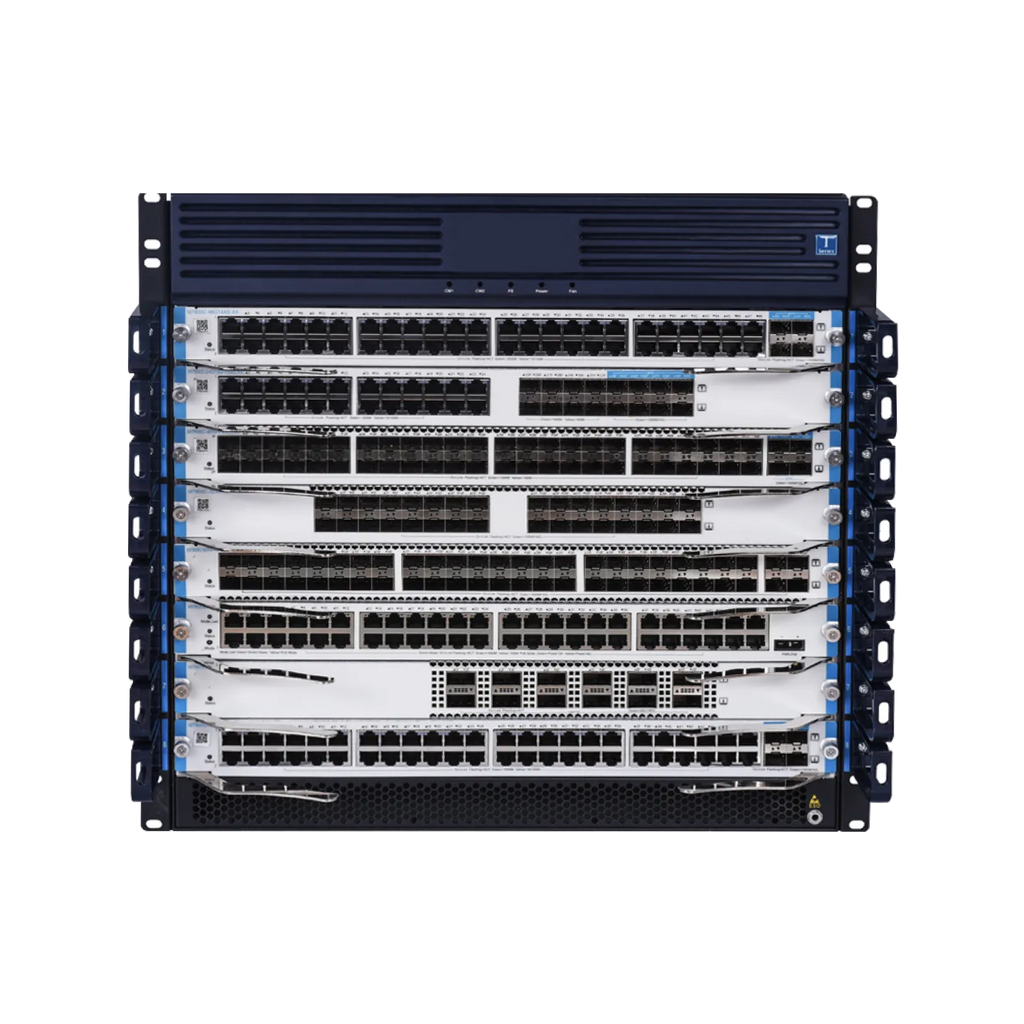

NS-S7810C-X 10-Slot Extended-Capacity Campus Core Switch
Overview
The NS-S7810C-X extends the capabilities of the NS-S7810C by doubling the fabric performance for ultra-dense, high-throughput environments. In its 10-slot chassis, it delivers up to 86.4 Tbps switching capacity and 11 610 Mpps forwarding—ideal for large-scale data-center leaf-spine deployments, carrier aggregation, or multi-tenant service platforms. All virtualization, SDN, and resilience features of the S7810C are preserved, with higher-capacity backplane modules and optional 400 GbE line-cards.
Highlights
-
Fabric Boost
• 86.4 Tbps switching / 11 610 Mpps forwarding -
Maximum Scalability
• 10 slots supporting any combination of 10/25/40/100/200/400 GbE modules -
Full Virtualization Suite
• VSU3.0, VSD, EVPN-VXLAN, OpenFlow 1.3—consistent multi-site management -
Carrier-Grade Features
• MPLS-SR, segment routing, BGP EVPN, multicast optimizations -
Extreme Resilience
• 2+2 PSU redundancy, 8+2 hot-swap fans, dual-boot flash modules
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA1200II-F | AC Power Module | 1200 W high-capacity hot-swap PSU |
| NS-PA2400II-F | AC Power Module | 2400 W ultra-high capacity PSU |
| NS-EXP-X Fabric | Fabric Module | High-density backplane upgrade module |
Compare with Similar Models
| Model | Slots & Port Modules | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S7805C | 2 engines + 3 service slots; mix of 10/25/40/100 GbE cards | 6 Tbps | 4 800 Mpps | 1+1 PSUs; 1+1 flash; redundant fans |
| NS-S7805C | Same | Same | Same | Same |
| Ruijie RG-S7808C | 2 engines + 6 service slots; mix of 1/10/25/40/100 GbE cards | 40.72 Tbps | 14 400 Mpps | 1+1 PSUs; 2+1 flash; 4+2 fans |
| NS-S7808C | Same | Same | Same | Same |
| Ruijie RG-S7810C | 2 engines + 8 service slots; supports up to 400 GbE cards | 47.7 Tbps | 10 065 Mpps | 1+1 PSUs; 2+1 flash; 6+2 fans |
| NS-S7810C | Same | Same | Same | Same |
| Ruijie RG-S7810C-X | Same chassis as S7810C with extended-capacity backplane | 86.4 Tbps | 11 610 Mpps | 2+2 PSUs; 2+1 flash; 8+2 fans |
| NS-S7810C-X | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS-S7810C-X |
| Chassis Slots | 2 supervisor + 8 service slots |
| Switching Capacity | 86.4 Tbps |
| Forwarding Rate | 11 610 Mpps |
| Fabric Modules | Extended-capacity backplane option |
| Virtualization | VSU3.0, VSD, EVPN-VXLAN, OpenFlow 1.3 |
| Resilience | 2+2 PSUs, 8+2 fans, dual-boot flash |
| Power Consumption | 1 200 W (chassis only) |
| Dimensions (W×D×H) | 442×580×177 mm (4 RU) |
| Weight | 31.8 kg (empty) |
| Operating Environment | 0 °C to 45 °C; 10–90% RH non-condensing |
