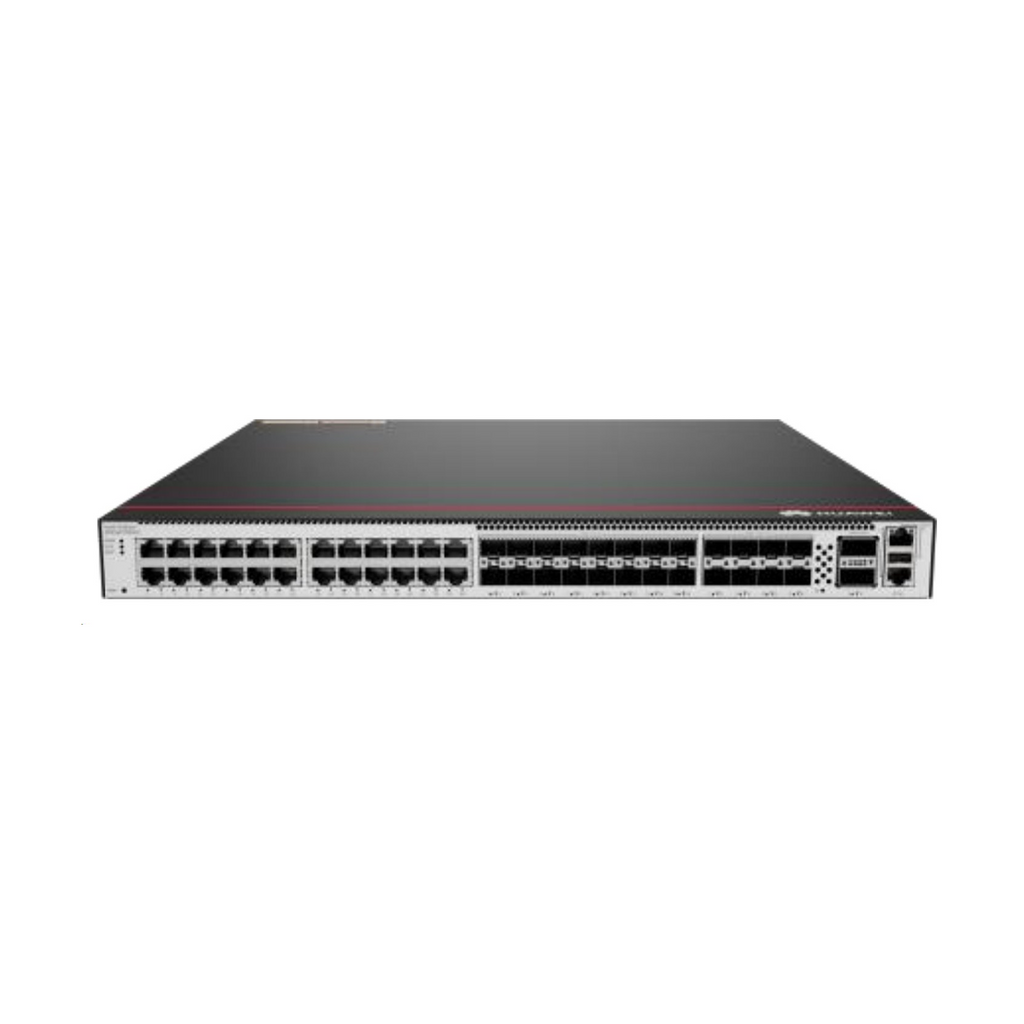

Huawei CloudEngine S6750-S24T16X8Y2CZ 24x1G+16x10G+8x25G+2x100G Switch
Shipping fees are calculated based on destination and order weight. View shipping details.
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Proven Expertise, Trusted Solutions
- 8 Years, 100+ Countries
- 10000+ Customers/Projects
- CCIE, HCIE, H3CIE, RCNP, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Join Partner Network
- Exclusive Discounts/Service
- Credit Terms/Priority Supply In Hongkong
Solutions
Huawei CloudEngine S6750-S24T4X Variant | S6750-S24T16X8Y2CZ Aggregation Switch
Overview
The huawei s6750-s24t16x8y2cz is a highly versatile, fixed-port 1U enterprise Ethernet platform engineered specifically for next-generation campus distribution layers and enterprise aggregation cores. As a high-performance member of the huawei s6750-s family line, this hardware platform integrates an ultra-dense, multi-rate interface design: 24 copper downlinks (10/100/1000 Mbps Base-T), 16 10 GE SFP+ optical sockets, 8 25 GE SFP28 high-speed ports, and 2 40/100 GE QSFP28 aggregation uplinks, alongside an integrated interface expansion slot.
By deploying the s6750-s24t16x8y2cz switch, network architects can easily orchestrate advanced campus virtualization and secure multi-tenant boundary isolation. The switch natively supports line-rate VXLAN fabrics, BGP-EVPN control planes, full-port hardware-accelerated MACsec encryption, and intelligent In-situ Flow Information Telemetry (IFIT) for real-time proactive health monitoring. Backed by 1+1 redundant modular power architectures and intelligent variable-speed thermal fans, it delivers carrier-grade availability to eliminate single points of failure at your network core.
Important B2B Procurement Note: Power supply modules are not included in the standard baseline chassis package and must be specified and purchased separately based on your target electrical infrastructure requirements.
-
Related Architectural Staging Guides:
-
Evaluating a high-density spine-and-leaf rollout? Read our comprehensive technical brief: Future-Proofing with Huawei S6750 Switch Series: 25GE/100GE Core Architectures.
-
Need to select compliant multi-vendor optical components? Review our technical guide: 10G/40G Optical Transceivers Matrix and Link Troubleshooting.
-
Key Highlights
-
Comprehensive Multi-Speed Hybrid Density: Integrates 24 1 GE copper RJ45 drops, 16 10 GE SFP+ distribution links, and 8 25 GE SFP28 links on a single 1U plate. The huawei s6750-s24t16x8y2cz smoothly bridges legacy copper endpoints with modern ultra-high-speed fiber networks.
-
Massive Core Backplane Performance: Delivers a powerful 968 Gbps device switching capacity (scaling up to 2.32 Tbps system-wide fabric under stacking parameters) paired with a blazing 450 Mpps packet forwarding rate to prevent upstream buffer exhaustion.
-
Advanced Campus Virtualization & Security Borders: Natively supports distributed and centralized VXLAN overlays and BGP-EVPN mapping. Full-port hardware MACsec provides point-to-point data link layer protection across the entire s5750-s architecture.
-
Intelligent Operational Lifecycle Support (IFIT): Features Huawei's cutting-edge In-situ Flow Information Telemetry (IFIT). The s6750-s24t16x8y2cz switch measures real-time packet loss rates and delay metrics at a granular level, enabling proactive fault isolation.
-
High Availability Modular Infrastructure: Features dual pliant hot-swappable fan trays driving smart front-to-rear airflow, combined with 1+1 pliant power module slots to guarantee non-stop forwarding protection.
Recommended Accessories
To successfully stage your huawei s6750-s24t16x8y2cz deployment, select original hot-swappable modules and appropriate transceivers based on your electrical and optical link parameters.
| Accessory | Category | Description |
|---|---|---|
| Power Supply Modules | Power | Hot-swappable AC/DC modules (180 W/600 W AC or 240 W/400 W DC); sold separately. |
| Fan Modules | Cooling | Includes 2 hot-swappable fans (FAN‑031A‑B); intelligent front-to-rear airflow. |
Comparison with Similar Models
| Feature | S6750‑S24T16X8Y2CZ | S6750‑S16X10Y2CZ | S6750‑S16X8YZ |
|---|---|---|---|
| Copper Downlinks | 24×1 GE | — | — |
| 10 GE Ports | 16×10 GE SFP+ | 16×10 GE SFP+ | 16×10 GE SFP+ |
| 25 GE Ports | 8×25 GE SFP28 | 10×25 GE SFP28 | 8×25 GE SFP28 |
| 40/100 GE Uplinks | 2×40/100 GE QSFP28 | 2×40/100 GE QSFP28 | — |
| Switching Capacity | 968 Gbps (2.32 Tbps system) | 1.42 Tbps device | 920 Gbps device |
| Forwarding Performance | 450 Mpps | 450 Mpps | 450 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | CloudEngine S6750‑S24T16X8Y2CZ |
| Downlink Ports | 24× 1/10/100 Mbps RJ45 |
| Optical Ports | 16×10 GE SFP+, 8×25 GE SFP28 |
| Uplink Ports | 2×40/100 GE QSFP28 |
| Expansion Slot | 1 slot |
| Device Switching Capacity | 968 Gbps |
| System Switching Capacity | 2.32 Tbps |
| Forwarding Rate | 450 Mpps |
| System Memory | 4 GB DRAM |
| Flash Storage | 2 GB Flash |
| Power Supply Slots | 2 hot-swappable, 1+1 redundancy (modules sold separately) |
| Fan Modules | 2 × FAN‑031A‑B, intelligent airflow |
| Power Consumption | 122 W (AC) / 118 W (DC) at 30% load; 127 W/123 W at full load |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight | 5.52 kg (device); 7.96 kg (packaged) |
| Operating Temp/Humidity | –5 °C to +45 °C, 5–95% RH non-condensing |
| Altitude | 0–5000 m |
| Virtualization Features | Distributed/central VXLAN, BGP‑EVPN |
| Security | MACsec on all ports |
| Telemetry & O&M | IFIT real-time telemetry |
| Power Input | AC: 90–290 V; DC: –38 to –72 V / 190–290 V |
| Compliance | CE, RoHS, FCC, CCC, IEEE, RFC standards |
