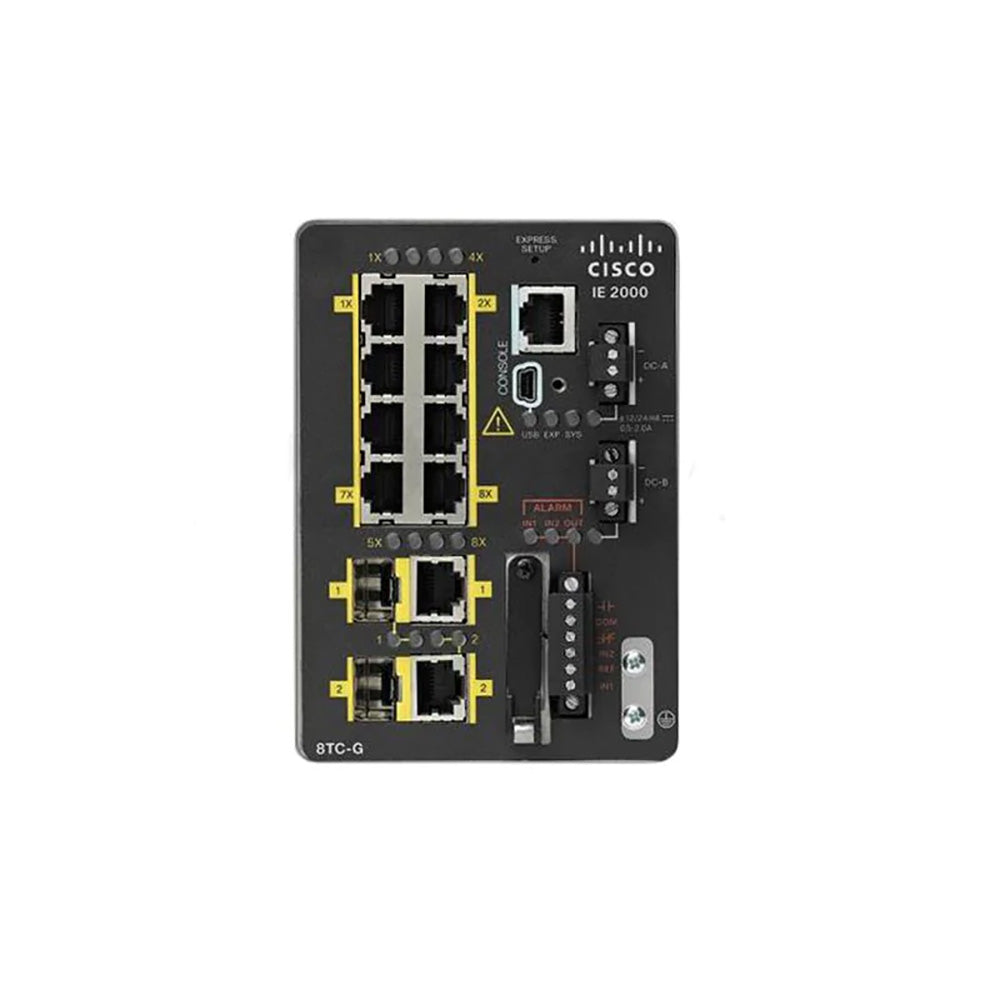

Cisco IE2000-8TC-G-E Rugged LAN Base Switch
The Cisco® Industrial Ethernet 2000-8TC-G-E is a compact, ruggedized LAN Base switch engineered for demanding U.S. industrial networks—from Chicago transit control centers to Texas oilfields.
It delivers eight auto-sensing 10/100 Mbps RJ-45 downlink ports plus two 100/1000 Mbps combo SFP/RJ-45 uplinks in a fanless, convection-cooled chassis.
With dual-input DC power, alarm I/O and a DIN-rail mount, it combines enterprise-grade security and Cisco Resilient Ethernet Protocol (REP) for sub-second failover in harsh environments
Overview
Highlights
-
Ports & Uplinks
8 × 10/100 Mbps RJ-45 downlinks + 2 × 100/1000 Mbps combo SFP/RJ-45 uplinks in a single 10-port chassis. -
Compact Rugged Design
IP30-rated metal housing, fanless convection cooling, and extended –40 °C to +75 °C operating range for reliable performance in extreme U.S. facilities. -
Switching Performance
Up to 7.6 Gbps of switching bandwidth and a 3.8 Gbps forwarding bandwidth with wire-speed 5.66 Mpps packet handling. -
High Availability & Resiliency
Cisco REP ring protocol and Media Redundancy Protocol (MRP) deliver sub-second network failover for mission-critical applications. -
Enterprise-Grade Security
802.1X port-based authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, port security, SSHv2, SNMPv3, BPDU Guard, RADIUS/TACACS+. -
Flexible Management
Zero-touch express setup via DHCP, Web Device Manager, Cisco Catalyst Center, CLI, Telnet/HTTPS, SNMP, and USB/SD flash for rapid U.S. site provisioning. -
Industrial Protocol & Standards
EtherNet/IP, PROFINET, IEEE 1588v2 PTP for synchronized automation; UL/CSA 60950-1, EN 60950-1, CB IEC 60950-1, NEMA TS-2, Marine DNV, Substation KEMA, Railway EN 50155, IP30 certified.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PWR-IE50W-AC= | Power Supply | 50 W AC/DC (100–240 VAC/1.25 A or 125–250 VDC/1.25 A); no PoE support |
| PWR-IE50W-AC-L= | Hazard-Location Power Supply | 50 W AC (100–240 VAC/1.2 A/50–60 Hz); IP20 rated for non-hazardous zones |
| SD-IE-1GB= | Removable Storage | 1 GB ruggedized SD memory card for configuration and firmware |
| STK-RACK-DINRAIL= | Mounting Hardware | 19″ DIN-rail mount kit for industrial racks and cabinets |
Comparison with Similar Models
| Feature | IE-2000-4TC-G-E | IE-2000-8TC-G-E | IE-2000-16TC-G-E |
|---|---|---|---|
| Ports & Uplinks | 4 × 10/100 RJ-45 + 2 × 100/1000 combo | 8 × 10/100 RJ-45 + 2 × 100/1000 combo | 16 × 10/100 RJ-45 + 2 × 100/1000 combo |
| Switching Capacity | 7.6 Gbps | 7.6 Gbps | 7.6 Gbps |
| Forwarding Rate | 5.66 Mpps | 5.66 Mpps | 5.66 Mpps |
| Power Consumption | 9.5–15 W | 12.5–20 W | 21–30 W |
| Operating Range | –40 °C to +75 °C; IP30 | –40 °C to +75 °C; IP30 | –40 °C to +75 °C; IP30 |
| Ideal Use Case | Compact I/O aggregation at remote sites | Mid-density industrial edge aggregation | High-density industrial backbone access |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | IE-2000-8TC-G-E |
| Feature Set | Cisco IOS LAN Base |
| Downlink Ports | 8 × 10/100 Mbps RJ-45 |
| Uplink Interfaces | 2 × 100/1000 Mbps SFP/RJ-45 combo |
| Maximum Switching Bandwidth | 7.6 Gbps full-duplex |
| Maximum Forwarding Bandwidth | 3.8 Gbps |
| Forwarding Rate | 5.66 Mpps (64-byte packets) |
| Packet Buffer | 2 MB |
| MAC Address Table | 8,000 entries |
| VLANs | Up to 1,005 |
| NAT Entries | 128 translation entries |
| IPv4 / IPv6 Routes | 3,500 / 1,750 routes |
| DRAM / Flash / SD Card | 256 MB DRAM with ECC; 64 MB on-board Flash; optional 1 GB SD card |
| Alarm I/O | 2 dry-contact inputs; 1 Form-C output relay |
| Console Ports | Mini-USB and RS-232 RJ-45 |
| Power Input | Dual-input: 100–240 VAC/1.25 A or 125–250 VDC/1.25 A |
| Power Consumption | 12.5–20 W (excluding PoE) |
| Dimensions (H × W × D) | 5.1″ × 3.6″ × 5.26″ (130 × 91.4 × 134 mm) |
| Weight | 3.45 lb (1.56 kg) |
| Operating Temperature | –40 °C to +75 °C |
| Operating Humidity | 0–100% condensing |
| Certifications & Compliance | UL/CSA 60950-1, EN 60950-1, CB IEC 60950-1, NEMA TS-2, Marine DNV, Substation KEMA, Railway EN 50155, ISO 12944-6, IP30, EtherNet/IP, PROFINET |
