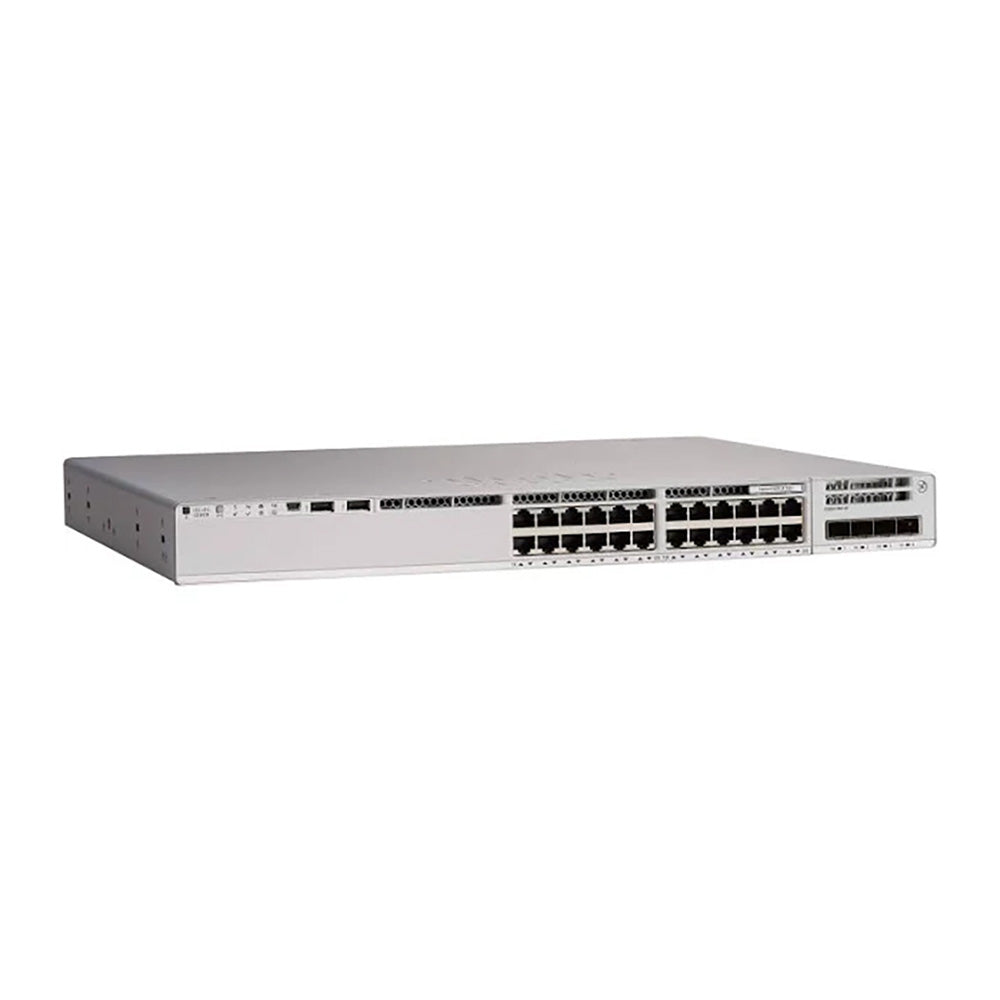

Cisco C9200-24T-A Access Campus Switch
The Cisco Catalyst 9200-24T-A is a 1 RU, fixed-port data-only access switch engineered for U.S. campus and branch deployments —from bustling New York City wiring closets to distributed Silicon Valley micro-branches.
Running Cisco IOS XE with the Network Advantage license on an x86 CPU and UADP 2.0 Mini ASIC, it offers 24 auto-sensing 10/100/1000 RJ-45 downlinks, modular uplink flexibility, and field-replaceable FRU power and fan modules for true “always-on” resiliency.
Centralized management via Cisco Catalyst Center or Meraki Dashboard streamlines operations for American IT teams.
Overview
Core Highlights
-
24 × 1 GbE Data Ports
24 autosensing 10/100/1000 RJ-45 downlinks for high-density access connectivity. -
Modular Uplink Expansion
Supports hot-swappable network modules—C9200-NM-4G (4×1 GbE SFP), C9200-NM-8X (8×10 GbE SFP+), or C9200-NM-2Q (2×40 GbE QSFP+)—to tailor uplinks to your U.S. campus or data-center backbone. -
Switching Capacity & Performance
128 Gbps non-blocking fabric and 95.23 Mpps wire-speed forwarding keep east-west traffic flowing seamlessly; in a StackWise-160 stack, scales to 288 Gbps and 214 Mpps. -
StackWise-160 Resiliency
Stack up to eight switches with 160 Gbps bidirectional stacking bandwidth, NSF/SSO and cross-stack EtherChannel for sub-50 ms failover. -
Field-Replaceable FRUs
Hot-swappable PWR-C6-125WAC power supply and C9200-FAN modules enable power and fan redundancy to minimize downtime. -
Enterprise-Grade Security
AES-128 MACsec encryption, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs protect your U.S. network edge. -
Advanced Programmability & Telemetry
Open APIs (NETCONF/RESTCONF, gNMI, NX-API/Python SDK), on-box scripting, and streaming telemetry integrate with Cisco DNA Center or Meraki Dashboard for automated, policy-driven operations. -
Energy-Efficient Design
IEEE 802.3az Energy-Efficient Ethernet and low-power fan management support U.S. sustainability and ENERGY STAR® goals.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200-NM-4G | Network Module | 4 × 1 GbE SFP uplink module for compact fiber aggregation |
| C9200-NM-8X | Network Module | 8 × 10 GbE SFP+ uplink module for high-speed campus backbone |
| C9200-NM-2Q | Network Module | 2 × 40 GbE QSFP+ uplink module for ultra-high-speed uplinks |
| PWR-C6-125WAC | Power Supply | 125 W AC FRU power supply (default) |
| C9200-FAN= | Fan Module | Field-replaceable fan tray for N+1 cooling redundancy |
| STACK-T1-50CM | Stacking Cable | 50 cm StackWise-160 stacking cable (160 Gbps) |
| C-RACK-KIT | Rack-Mount Kit | 1 RU accessory kit for standard 19″ racks |
Comparison with Similar Models
| Feature | C9200-24T-A (Advantage) | C9200-24T-E (Essentials) | C9200-24P-A (PoE+ Advantage) |
|---|---|---|---|
| Ports & Uplinks | 24×1 GbE + modular slot | 24×1 GbE + modular slot | 24×PoE+ + modular slot |
| License | Network Advantage | Network Essentials | Network Advantage |
| Switching Capacity | 128 Gbps duplex | 128 Gbps duplex | 208 Gbps duplex |
| Forwarding Rate | 95.23 Mpps | 95.23 Mpps | 154.76 Mpps |
| PoE Budget | N/A | N/A | 445 W (upgradable to 720 W) |
| Stacking Bandwidth | 160 Gbps | 160 Gbps | 480 Gbps |
| Ideal Use Case | Advanced data-only edge services | High-density data-only access | High-density PoE+ endpoint access |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200-24T-A |
| Description | Catalyst 9200 24-port 1 GbE data switch with Network Advantage license |
| Software | Cisco IOS XE with Network Advantage |
| Downlink Ports | 24 × 10/100/1000 RJ-45 autosensing |
| Uplink Expansion | 1 × hot-swappable module slot (supports C9200-NM-4G/-8X/-2Q) |
| Switching Capacity | 128 Gbps full-duplex |
| Forwarding Performance | 95.23 Mpps (64-byte packets); 214 Mpps in StackWise-160 stack |
| Stacking | Cisco StackWise-160; up to 8 switches; 160 Gbps bidirectional bandwidth |
| Power Supply | 1 × PWR-C6-125WAC (125 W AC); FRU-redundant supported |
| Fans | Field-replaceable modular fans |
| MAC Address Table | 32,000 entries |
| Virtual Networks (VRFs) | Up to 4 VLAN-based VRFs |
| Security Features | AES-128 MACsec, Secure Boot, Trust Anchor Module, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs |
| DRAM / Flash | 4 GB DRAM; 4 GB flash |
| CPU & ASIC | x86 multicore CPU; Cisco UADP 2.0 Mini ASIC |
| Environmental | 32 °F–113 °F (0–45 °C); 5–90% RH non-condensing; up to 10,000 ft altitude |
| Dimensions (HxWxD) | 1.73″ × 17.5″ × 13.8″ (4.4 × 44.5 × 35.0 cm) chassis-only |
| Weight | 11.02 lb (5.0 kg) |
| Certifications & Compliance | FCC Class A, UL/CSA, CE, RoHS, WEEE |
| Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty |
