Introduction: Why new fiber connectors are needed?
As networks move from 100G to 400G and 800G, one challenge becomes clear: the number of optical ports in a single rack is exploding. Traditional connectors like LC duplex or MPO/MTP have served data centers well for decades, but they now face limits in density, handling, and airflow.

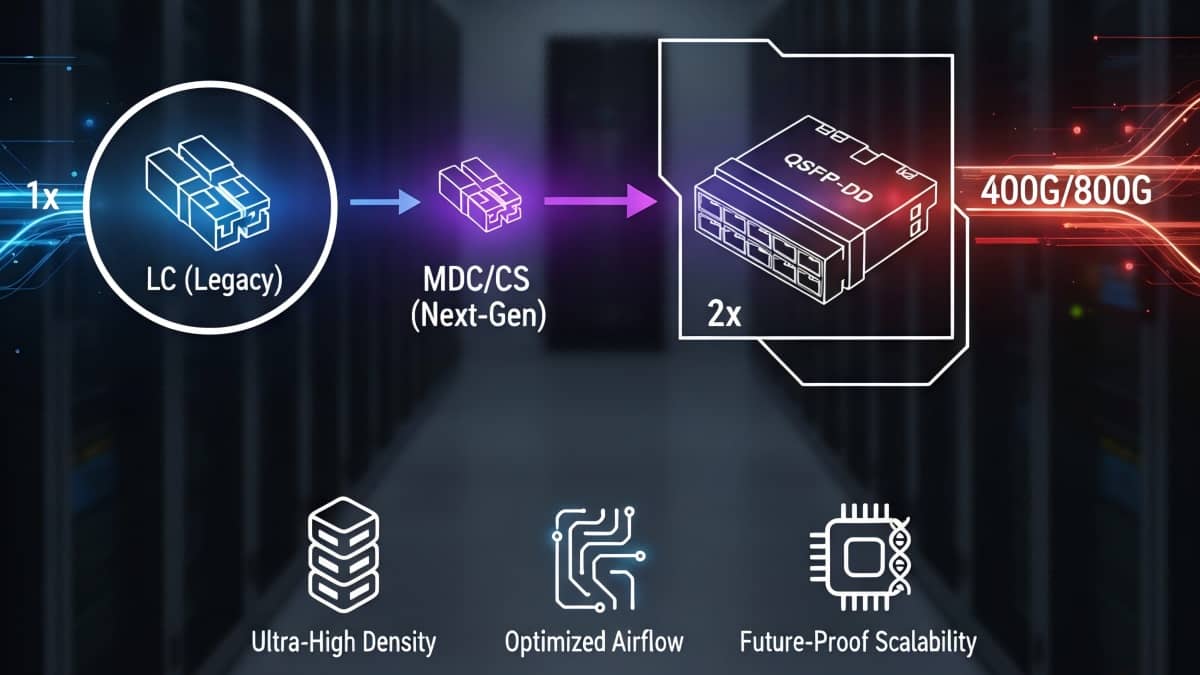

This is where MDC (Miniature Duplex Connector) and CS connectors come in. These next-generation duplex connectors are smaller, denser, and specifically designed to match the needs of 400G/800G optics and beyond.
In this article, we’ll explain what MDC and CS connectors are, how they compare with LC, why they matter for modern networks, and how they fit into the future of data centers.
MDC and CS Connectors Overview
What is an MDC Connector?
The MDC (Miniature Duplex Connector) is developed by US Conec as a next-generation replacement for LC in high-density environments.
Key features:
- About 50% smaller than LC, doubling density in the same panel space.
- Maintains a duplex format (Tx and Rx side by side).
- Uses 1.25mm ceramic ferrules, the same ferrule size as LC.
- Supports push-pull tabs and can use a tool for insertion/removal, which helps in crowded panels.
- Designed to work with QSFP-DD, OSFP, COBO and other new module form factors.
Where it’s used:
- 400G/800G duplex ports (like DR4 breakout or FR4 modules).
- High-density fiber shelves or patch panels where space is limited.
What is a CS Connector?
The CS connector was introduced by Senko as another option for high-density duplex connections.
Key features:
- Also ~50% smaller than LC.
- Uses the same 1.25mm ferrules as LC and MDC.
- Push-pull design with a slim housing, making it easier to use in dense panels.
- Specifically designed for next-gen pluggable modules like OSFP and QSFP-DD.
Where it’s used:
- 400G and 800G optics (DR4/FR4 for duplex lanes).
- Patch panels and cassettes where high density is required.
MDC vs CS vs LC
| Aspect | MDC | CS | LC (legacy) |
| Size | ~50% smaller than LC | ~50% smaller than LC | Standard size |
| Density | Very high (2× LC per RU) | Very high | Medium |
| Ferrule | 1.25mm ceramic | 1.25mm ceramic | 1.25mm ceramic |
| Handling | Push-pull, optional tool | Push-pull tab | Latch design |
| Best Use | 400G/800G duplex optics, panels | 400G/800G duplex optics, panels | 10G–100G duplex optics |
| Adoption | Growing in hyperscale DCs | Growing in hyperscale DCs | Mature, everywhere |
👉 Both MDC and CS target the same problem: LC is too big for 400G/800G density. They solve it in slightly different ways, depending on vendor ecosystem.
Why High-Density Connectors Matter for 400G/800G
At 100G, a typical rack might host a few dozen fiber connections. At 400G or 800G, that number multiplies.
- Density: Hundreds or even thousands of fiber ports may be needed in a single rack.
- Airflow: Thick LC jumpers make airflow and cooling harder.
- Future growth: Data centers want to prepare for 1.6T and beyond.
MDC and CS connectors provide:
- Double density vs LC — more ports per rack unit.
- Cleaner cabling — slim connectors reduce mess.
- Compatibility with new transceivers — OSFP and QSFP-DD modules increasingly use MDC/CS instead of LC.
Use Cases in Data Centers
- DR4 breakout to duplex fibers.
- FR4 duplex optics in QSFP-DD/OSFP form factors.
Ultra-dense patch panels
- Where LC panels cannot fit enough ports.
- Allows 2× port count per rack unit compared to LC.
AI and HPC clusters
- GPU interconnects require thousands of links.
- MDC/CS help keep cabling manageable and airflow clean.
Cloud and telecom providers
- Hyperscale environments adopting 400G/800G need connectors optimized for density and serviceability.
Deployment Considerations
- Cabling support: Both MDC and CS support OM4/OM5 multimode and OS2 single-mode fiber.
- Polarity management: Similar to LC but tighter spacing; MDC may require a removal tool.
- Compatibility: Still early in adoption. Check whether your optics or patch panels support MDC/CS.
- Cleaning and inspection: Smaller connectors mean stricter cleanliness requirements; invest in proper tools.
Future Outlook
- 400G/800G adoption will accelerate MDC and CS connector use.
- MPO/MTP will still dominate parallel optics (SR4, DR4, DR8).
- Combination approach: MPO/MTP trunks for backbone, MDC/CS duplex for transceivers and panels.
- Beyond 800G: 1.6T and co-packaged optics may push connector designs even further, but MDC/CS are strong candidates for the next decade.
FAQs
Q1: Why not just keep using LC?
A: Because LC is too large for modern high-density panels. MDC/CS can fit twice the ports in the same space.
Q2: Are MDC and CS interchangeable?
A: No. Both use 1.25mm ferrules, but their housings and adapters are different. You need the right adapter for each.
Q3: Which optical modules use MDC/CS?
A: Many QSFP-DD and OSFP 400G/800G modules now ship with CS or MDC ports.
Q4: Do I need special cleaning tools?
A: Yes. Smaller connectors = stricter cleaning standards. Dedicated cleaning sticks are recommended.
Q5: How do MDC/CS work with MPO/MTP?
A: MPO/MTP provides parallel backbone (e.g., 8/16/32 fibers). Breakout cassettes convert to MDC/CS duplex for transceivers.
Q6: Should I buy patch panels that support MDC/CS now?
A: If you’re planning for 400G/800G, yes. For 100G or below, LC panels are fine.
Q7: Which has better adoption, MDC or CS?
A: Both are growing. MDC is backed by US Conec, CS by Senko. Hyperscale operators are testing both.
Q8: Are these relevant for SMBs?
A: Not today. SMBs using ≤100G can stick with LC and MPO. MDC/CS matter for hyperscale or HPC deployments.
Conclusion
MDC and CS connectors represent the next evolution of duplex fiber connectivity.
- Why they exist: LC can’t meet 400G/800G density requirements.
- What they provide: 2× density, cleaner cabling, compatibility with new optics.
- Where they fit: AI/HPC clusters, hyperscale data centers, 400G/800G deployments.
In the near future, MPO/MTP will dominate parallel optics, but MDC/CS will dominate duplex connections in 400G/800G modules.
👉 For success, always plan end-to-end consistency: NIC ↔ module ↔ panel ↔ fiber. Platforms like network-switch.com already provide optics, cables, and panels tested for MDC and CS, ensuring smooth upgrades.
