Introduction

As networks grow more complex in 2026-more east-west traffic, more virtual machines and containers, more storage and backup traffic-the humble link aggregation group (LAG) remains one of the core building blocks of a robust design.

You see link aggregation:

• Between access and distribution switches
• Between servers and ToR switches (NIC bonding)
• Between firewalls/load balancers and cores
• Inside data centers as part of MLAG and leaf-spine topologies

But many people still get tripped up on questions like:

• "What's the difference between LAG and LACP?"
• "What does MLAG actually add?"
• "Does a LAG double my bandwidth?"
• "How do STP and ECMP fit into this?"

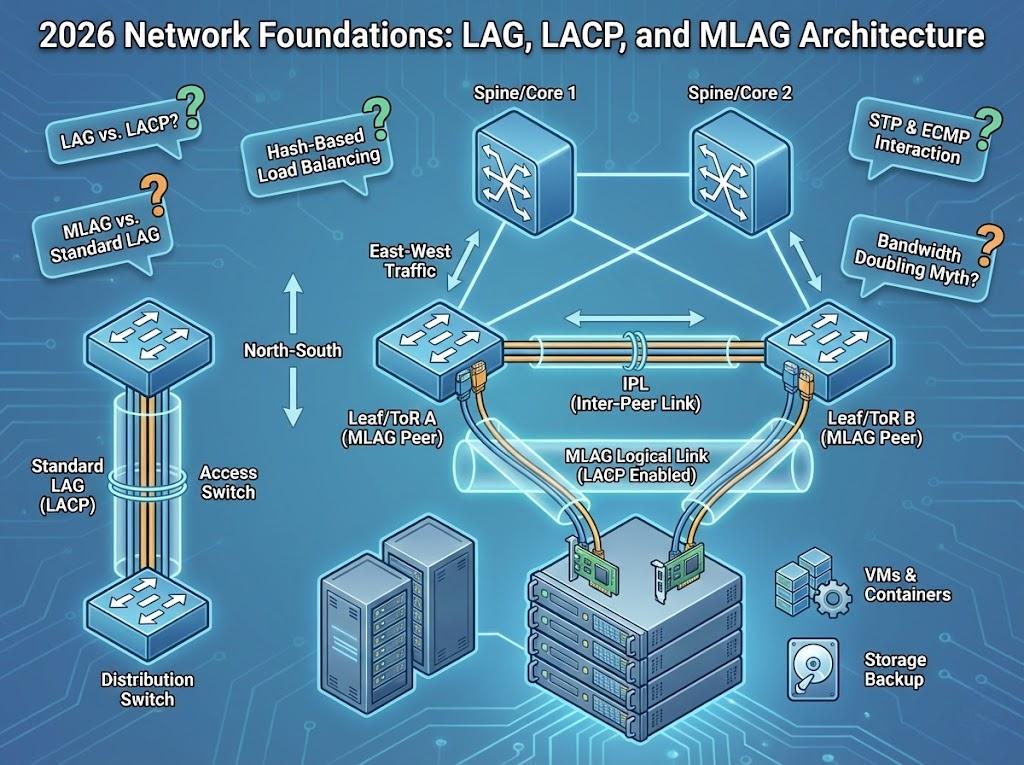

This article walks you through:

• Fundamentals: link aggregation, LAG, LACP
• Static vs LACP and when to use each
• Hash-based load balancing and how it really behaves
• MLAG and its relationship to LAG/LACP
• Server NIC bonding/teaming and how it maps to switch configs
• STP interaction, link-state tracking, and ECMP vs LAG
• Practical design patterns and common gotchas

Link Aggregation and LAG Fundamentals

What is Link Aggregation?

Link aggregation is the practice of bundling multiple physical Ethernet links into a single logical connection between two devices. Instead of one cable at 10G, you might have:

• 2 × 10G → logically seen as "20G"
• 4 × 10G → logically "40G"

Of course, as we'll see later, each flow does not get 40G, but in aggregate, you can use all the links.

Key goals:

• Increase aggregate bandwidth
• Provide redundancy at the link level
• Improve resource utilization by sharing load
• Scale bandwidth by adding links, not replacing hardware

What is a Link Aggregation Group (LAG)?

A Link Aggregation Group (LAG) is:

A single logical interface (often called port-channel, Eth-Trunk, or Link-Aggregation) composed of multiple physical member ports.

From the perspective of the rest of the system:

• The LAG behaves as one interface: One set of VLAN/trunk settings One IP address if used as an L3 interface
• The physical member ports are hidden behind that logical interface.

Common Use Cases for LAG

You will typically use LAGs:

• Switch-switch: Access ↔ distribution Distribution ↔ core Leaf ↔ spine (sometimes with L3 port-channels)
• Switch-server/storage: Servers with dual or quad NICs bonded to a ToR switch. NAS or storage arrays with multiple Ethernet ports.
• Switch-appliance: Firewalls, load balancers, SD-WAN boxes with multiple uplinks to the core.

LAGs help avoid single link bottlenecks and provide graceful degradation when a cable or transceiver fails.

Types of LAG - Static vs Dynamic (LACP)

Static (Manual) LAG

A static LAG is configured manually on both sides:

• You tell each device "these ports belong to LAG X".
• There is no negotiation protocol-both devices just trust that the other side is configured correctly.

Characteristics:

• Detects physical link down: If a member port goes down (no carrier), it is removed from the LAG.
• Does not detect: Cabling mistakes (plugged into the wrong switch). Mismatched configuration (VLANs, trunk/access, etc.).

Pros:

• Simple, no extra protocol overhead.
• Works even on devices that don't support LACP.

Cons:

• Operationally fragile: If one side is misconfigured, traffic can blackhole or loop. No automatic "sanity check" from the protocol.

Typical use cases:

• Small, stable environments where you have tight control and minimal change.
• When one or both devices do not support LACP.

Dynamic LAG with LACP

A dynamic LAG uses the Link Aggregation Control Protocol (LACP) to:

• Negotiate which ports form a LAG
• Detect misconfigurations and link issues
• Maintain LAG membership dynamically

Characteristics:

• Devices exchange LACPDUs (LACP Data Units).
• Only ports that agree on parameters (system ID, key, etc.) join the same LAG.
• Failed or misconfigured links are automatically removed from the active set.

Pros:

• Better safety: Helps detect miswiring or incorrect partner. Automatic removal of failed links.
• Easier to operate at scale as networks grow and change.

Cons:

• Slightly more complex conceptually.
• Not all low-end devices support LACP.

Static vs LACP Comparison Table

LACP Deep Dive

LACP Basics

LACP is the standardized protocol that:

• Discovers which interfaces on each device are eligible for aggregation.
• Negotiates which interfaces belong to a particular LAG.
• Monitors health and status, removing problematic members.

It ensures both sides agree on:

• The system they are talking to (system ID, often MAC + priority)
• The key for the LAG (which identifies which ports belong together)
• Which ports are active/standby at any time

LACP Modes - active, passive, on

Most vendors implement LACP modes like:

• active: Actively sends LACPDU frames and attempts to form a LAG.
• passive: Listens for LACPDU, responds when received, but does not initiate on its own.
• on (or force): Forces ports into a LAG without running LACP (effectively static LAG).

Common combinations:

• active ↔ active → LACP LAG forms
• active ↔ passive → LACP LAG forms
• passive ↔ passive → no one initiates; LAG does not form
• on ↔ active/passive → may cause odd behavior; treated as static depending on vendor

Best practice:

• Use active on at least one side (active-active or active-passive) if you intend to run LACP.
• Use on only when you explicitly want a static LAG (no LACP).

LACP Timers and Convergence

LACP supports different timers:

• Long/slow timer: LACPDUs sent roughly every 30 seconds. Slower to detect failures at protocol level (though link-down is still immediate).
• Short/fast timer: LACPDUs sent roughly every 1 second. Faster detection if a link is "up" at the electrical level but not forwarding LACPDUs.

Use cases:

• Short/fast timers: Latency-sensitive or critical links (e.g., server NIC bonding, key uplinks).
• Long/slow timers: Less critical links, or where you want to reduce protocol chatter.

System and Port Priorities

LACP uses priorities to decide:

• Which system (device) is in control if there are multiple possible aggregations.
• Which ports become active when you have more links than allowed active members.

For example:

• You may have 4 physical links but configure the LAG to use a maximum of 2 active.
• The two with higher port priority (or lower priority value, depending on vendor) become active; others are standby.

In practice:

• This lets you design "backup" members that only join the LAG if some active links fail.

Load Balancing in LAGs - How it Actually Works

Hash-Based Distribution

LAGs do not create a single fat pipe in the sense of one big serialized link. Instead:

• Each outgoing frame is assigned to a member link based on a hash function.
• Typical hash inputs: Source/destination MAC (L2) Source/destination IP (L3) Source/destination TCP/UDP port (L4) Or combinations (L2/L3, L3/L4, L2/L3/L4) depending on device and configuration.

The goal is to:

• Keep packets of the same flow on the same link (to prevent reordering).
• Distribute different flows across different links.

Single-Flow vs Multi-Flow Behavior

This has an important consequence:

• A single TCP/UDP flow will usually be pinned to one member link.
• Its maximum throughput is limited by that link's capacity (e.g., 10G).

LAG shines when:

• There are many flows between devices: Servers with many clients Multiple VMs/containers Many applications running in parallel

In those cases, the hash spreads flows across links and the aggregate capacity approaches "N × link speed".

Tuning Hash Algorithms and Diagnosing Imbalances

Sometimes, traffic patterns lead to:

• One link heavily used
• Others nearly idle

Reasons:

• Many flows share similar src/dst or port combinations and collide in the hash.
• LAG is hashing only on L2 but most traffic is to a single MAC, etc.

Mitigations:

• Adjust the hash policy (e.g., from L2 to L3/L4) to get more entropy from IP/port info.
• Verify link utilization and adjust as needed.
• In extreme cases, change topology so flows can be better distributed.

LAG vs ECMP - Link-Level vs Route-Level Multipathing

Don't confuse LAG with ECMP:

• LAG: Multi-link on a single hop between two devices. Operates at link layer, but can hash on L2, L3, L4 fields.
• ECMP (Equal-Cost Multi-Path): Multiple routing paths across different hops/devices. Operates at network layer (L3); each path has similar cost.

You often combine them:

• Each hop uses a LAG between devices.
• The routing layer has multiple ECMP paths across different devices or racks.

Together, ECMP and LAG form the foundation of scalable, redundant networks-especially in leaf-spine designs.

Beyond Single-Chassis LAG - MLAG and Stacking

What is MLAG (Multi-Chassis Link Aggregation)?

Classic LAG bundles ports on one device.

MLAG (Multi-Chassis LAG) extends that idea:

Two physical switches coordinate to present themselves as a single LAG partner to a downstream device.

Names vary by vendor:

• MLAG, MC-LAG, vPC, MC-LINK, etc.

From the downstream device's perspective:

• It just configures a normal LAG (often LACP) with its ports.
• It doesn't know (or care) that its LAG members go to different upstream switches.

From the upstream side:

• Two switches maintain: Peer-link between them. Shared state about MAC/ARP/VLANs, LAG membership, and forwarding.

Benefits of MLAG

• Device-level redundancy: If one upstream switch fails, the downstream device still has active links to the other.
• No STP blocking of redundant uplinks: All LAG members can be forwarding, no need to block one leg for loop prevention.
• Fits well with: Servers with dual NICs connecting to two different switches. Access switches dual-uplinking into a redundant distribution/core pair.

MLAG vs Stacking / Virtual Chassis

Stack / Virtual Chassis / IRF / VSF / VSS, etc.:

• Multiple physical boxes act as one logical switch: Single control plane view. One configuration file (often). One management IP.

LAG with stacking:

• To a downstream device, a stacked pair is literally one switch with many ports.
• You can create LAGs across physical members in the stack transparently.

MLAG is different:

• Two switches remain logically independent (separate configs, OS, control planes), but: They synchronize enough state to behave as one LAG partner.
• Easier to upgrade and operate in large distributed environments, but more complex under the hood.

When to choose what:

• Stacking: Great for smaller cores or simple campus designs where you don't mind a single logical control plane.
• MLAG: Better for distribution or DC leaf roles, where you want: Independent control planes Rolling upgrades More flexible failure domains.

MLAG vs EVPN Multihoming (High-Level View)

• MLAG: Classic solution for multi-chassis connectivity in traditional L2/L3 networks.
• EVPN Multihoming: Used in modern VXLAN/EVPN fabrics to provide multi-homing with control-plane awareness at L2/L3.

For many enterprises, MLAG is enough; very large DC fabrics often move to EVPN multihoming.

LAG and Servers - NIC Bonding / Teaming

Server-Side Bonding Modes

Most OS platforms support some concept of bonding/teaming:

• Linux bonding/team: Modes like: active-backup balance-xor 802.3ad (LACP) others depending on distro
• Windows NIC Teaming: Switch-independent vs switch-dependent (LACP) modes.
• VMware vSwitch/vDS: Port groups configured for LAGs or load-based teaming.

Mapping Bonding Modes to Switch Config

The server's bonding mode must match the switch-side configuration:

• Server in 802.3ad/LACP mode: Switch ports must be in an LACP LAG.
• Server in static/balance-xor mode: Switch ports must be in a static LAG with matching hash.
• Server in active-backup mode: Typically, each NIC connects to a different switch or port but only one is active at a time; no LAG required (on switch side, they may be simple access ports or separate LAGs depending on design).

Common gotcha:

• Server uses 802.3ad but switch ports are configured as normal access ports or not in a LAG → unpredictable behavior.

Common Pitfalls in Switch-Server LAG

• Mode mismatch (LACP vs static vs no aggregation).
• VLAN/trunk mismatch between server and switch.
• Expecting aggregate bandwidth for a single flow (it won't happen).
• Not checking LACP status; assuming both NICs are actually in the same LAG.

LAG, STP, and Link-State Tracking

How LAG Interacts with STP

Spanning Tree Protocol (STP/RSTP/MSTP) sees:

• A LAG as one logical port.

Implications:

• STP will block or forward the entire LAG as a unit.
• Member links are not considered independent STP links; no risk of STP blocking one while leaving another forwarding.

This is good:

• You can have multiple physical links without creating parallel STP links that need blocking.

Do I Still Need STP if I Use LAG Everywhere?

Yes, if:

• Your topology has any L2 loops beyond the LAG itself.

Examples:

• Multiple switches connected in rings or meshes.
• Redundant L2 paths between access switches.

In fully routed designs (L3 to the access, leaf-spine with L3 underlay):

• L2 domains are intentionally kept small and controlled, and: STP still exists but is less critical and often limited to access edge.

Link-State Tracking / Uplink Failure Propagation

Link-state tracking (or Uplink Failure Detection) is a mechanism where:

• If an access switch loses all uplinks (e.g., its LAG to the core fails completely),
• It can automatically shut down its downlink ports to prevent endpoints sending traffic into a blackhole.

Use cases:

• Dual-homed servers that connect to two access switches: If access-switch A loses core connectivity, its downlink to the server can be disabled so traffic uses access-switch B instead.

How it complements LAG:

• LAG handles per-link failures inside the bundle.
• Link-state tracking handles the case where the entire uplink bundle is gone and downstream ports must be reacted upon.

Should I Enable Link Aggregation?

When LAG is Beneficial

Consider enabling link aggregation when:

• You have two or more parallel links between devices.
• You want: More aggregate throughput than a single link. Redundancy so that one link's failure doesn't drop the entire connection.

Examples:

• 2×10G uplinks from access to distribution instead of a single 20G port.
• 4×25G from server to leaf switch instead of a single 100G port (if hardware supports it).

When LAG Might Not Help Much

You might not benefit much if:

• You have only a single high-bandwidth flow: For example, one backup stream from A to B - it will remain limited to one link's speed.
• Your bottleneck is: CPU on the server. Disk/storage subsystem. WAN/the Internet, not your internal links.
• You consider mixing links of different speeds in a single LAG: Generally not recommended; most devices expect uniform link speeds within a LAG.

Typical Patterns

Good use cases:

• Access switches with multiple uplinks to distribution/core.
• Servers with dual or quad NICs that need redundancy and aggregate throughput.
• Appliances with multiple uplinks (firewalls, load balancers, WAN edge devices).

Configuring LAG/LACP - Vendor-Neutral Overview

Design and Pre-Check

Before touching CLI:

• Decide: Static vs LACP. Number of member ports and their speed (e.g., 2×10G, 4×25G). Hash algorithm (L2, L3, L3+L4).
• Verify: Both ends support the same standard (802.3ad/802.1AX). VLAN/trunk vs access mode is consistent. MTU and other link settings match.

Switch-Switch LACP Example (Conceptual Steps)

1. Select member ports on both switches (e.g., TenGig 1/1-1/2).
2. Create a LAG/port-channel interface on each switch (e.g., Port-Channel1).
3. On member ports: Enable LACP (e.g., mode active). Assign them to the LAG (e.g., channel-group 1).
4. On the LAG interface: Configure VLAN/trunk parameters. Optionally assign IP if it's an L3 LAG.
5. Verify: LACP state: both sides agree; all expected members are active. Traffic distribution: check link utilization.

Exact commands vary (Cisco, Huawei, Ruijie, H3C, NS), but the logic is the same.

Server-Switch LACP Example (Conceptual)

On the server:

• Configure NIC team/bond: Select team mode 802.3ad / LACP. Add relevant NICs as members.

On the switch:

• Create LAG/port-channel with those ports.
• Enable LACP (active/passive).
• Configure appropriate VLAN/trunk settings.

Verify:

• Server OS shows the team up and active.
• Switch LAG shows ports are aggregated via LACP and passing traffic.

Multi-Vendor and Interoperability Considerations

• Stick to standard 802.3ad/802.1AX LACP behavior.
• Avoid vendor-specific "special LAG" modes when crossing vendor boundaries.
• Pay attention to: LACP modes (active/passive). Default hash policies. Maximum member count differences.

Whenever you mix vendors, lab testing is highly recommended.

FAQs

Q1: Does link aggregation double my bandwidth for a single flow?

A: No. A single flow (e.g., a single TCP connection) is typically pinned to one physical member in the LAG to avoid packet reordering. LAG increases total throughput across many flows, not the speed of one flow.

Q2: How many physical links should I put in a single LAG?

A: Practically:

• Common LAG sizes are 2-8 links.
• Larger groups increase complexity and can hit platform limits (MAC/TCAM, hashing quality).
• Diminishing returns: Going from 1→2 gives big redundancy and capacity jump. Going from 4→8 might not improve utilization much unless you have huge flow diversity.

Check your switch's maximum members per LAG and total number of LAGs.

Q3: What happens if one side is static LAG and the other uses LACP?

A: Outcomes vary by platform:

• Some devices will still aggregate links as long as the physical settings match, effectively behaving like static LAG.
• Others may not form a proper logical LAG or may report errors.

Best practice:

• Usematching modes on both sides: LACP ↔ LACP Static ↔ Static
• Avoid mixing mode on (static) with dynamic LACP when you can.

Q4: How do I choose the right hash algorithm?

A: Consider your traffic:

• If most traffic is between many different IP pairs: L3/L4 hashing is usually best (src/dst IP + ports).
• For purely L2 environments: L2 (MAC-based) hashing may suffice.

Test and monitor:

• Look at link utilizations in the LAG.
• If one link is hot and others are idle, try: Including more fields (L4 ports) in hash. Or adjusting topology / addressing so flows are more diverse.

Q5: What's the difference between LAG and MLAG in practice?

A:

• LAG: All member ports live on a single device. Provides link-level redundancy.
• MLAG: Member ports spread across two devices that coordinate. Provides both link-level and device-level redundancy.

To the downstream device, MLAG still looks like a single LAG.

Q6: Can I form a LAG across more than two devices?

A: Not with classic LACP across independent devices.

You can:

• Use stacking/virtual chassis so several devices act as one logical switch and then form a LAG from that logical switch.
• Use MLAG/EVPN MH, where upstream devices coordinate.

But you cannot form a single LACP LAG with arbitrarily many independent devices directly.

Q7: How does LACP interact with STP/RSTP/MSTP?

A:

• STP sees each LAG as one port.
• LAG reduces the need for STP to block redundant parallel links between the same two devices.

You still need STP if you have any potential loops beyond those LAGs. L3 designs and overlays can reduce reliance on STP, but in pure L2 designs, STP remains important.

Q8: Is LAG alone enough for high availability?

A: LAG gives you:

• Link-level redundancy and increased bandwidth.

For full HA you also need:

• Device redundancy (stacking, MLAG, EVPN MH).
• Routing redundancy (OSPF/BGP with ECMP, VRRP/HSRP on gateways).
• Layer-2 loop protection (STP) or minimized L2 domains via L3 designs.

LAG is a key piece, but not the whole HA story.

Q9: Are there special gotchas when using LAG across different vendors?

A: Yes:

• Different default LACP modes (e.g., passive vs active).
• Different hash defaults and capabilities.
• Different interpretations of "fast" timers.
• Incompatibilities in vendor-specific features (non-standard LAG implementation).

Stick to:

• Standardized LACP (802.3ad/802.1AX).
• Simple, well-documented configurations.
• Lab validation before production.

Q10: How can Network-Switch.com help validate my LAG/LACP/MLAG design?

A: Network-Switch.com can:

• Review your existing or planned topology.
• Suggest where to use static LAG, LACP, and MLAG.
• Provide multi-vendor configurations (Cisco/Huawei/Ruijie/H3C/NS) that match your design.
• Help test: Failure scenarios (link down, switch down). Hash balancing under realistic traffic.

This reduces risk and ensures your interconnect design is robust before you roll it into production.

Why Choose us for LAG/LACP/MLAG-Capable Networks?

1. Multi-Vendor Switching Portfolio

We offer:

• Access, distribution, core, and data center switches from: Cisco, Huawei, Ruijie, H3C, and NS
• Port mixes for: 1G/2.5G access 10G/25G uplinks 40G/100G and beyond for core/leaf-spine fabrics
• Feature support (model-dependent): LAG, LACP MLAG / vPC-style multi-chassis aggregation EVPN-VXLAN and EVPN multihoming for modern DC fabrics

2. End-to-End Architecture Design

We help customers design:

• Campus networks: LAG uplinks, LACP-based redundancy, and MLAG at distribution/core.
• Data centers: ToR-server bonding, leaf-spine LAG/ECMP fabrics, MLAG or EVPN MH for server and TOR redundancy.
• Server/storage interconnects: Bonding/teaming designs that match switch LAG/LACP configuration.

We align:

• Hardware capabilities
• Cabling and optics/DAC/AOC
• Control-plane protocols (STP, OSPF/BGP, VRRP/HSRP, EVPN)

Validation and Troubleshooting Support

Network-Switch.com can assist with:

• Pre-deployment lab testing.
• Best-practice templates for LAG/LACP/MLAG.
• Tuning hash algorithms and LACP timers.
• Root cause analysis when a LAG behaves unexpectedly.

Conclusion

Link aggregation, LAG, LACP, and MLAG are not old tricks-they're foundational technologies that still underpin most serious networks in 2026:

• LAG increases aggregate bandwidth and provides link-layer redundancy.
• LACP adds automation, validation, and safety over static LAGs.
• MLAG (and stacking) extend resiliency from links to devices, enabling dual-homed designs for servers and access switches.

When you combine:

• Well-planned LAG/LACP/MLAG
• Good hash/load-balancing design
• Proper use of STP, ECMP, and routing/HA protocols

you get networks that are scalable, resilient, and easier to operate.

Network-Switch.com can help you pick the right switches, design the right topology, and validate your link aggregation strategy so it works the way you expect, not just in the lab-but in production.

Did this article help you or not? Tell us on Facebook and LinkedIn . We’d love to hear from you!

Related posts

Switches What is a Network Switch? Understanding its Function, Types, and Applications April 10, 2025 3:05 AM

Switches Who Manufactures Switches for Transition Networks? April 11, 2025 12:00 AM

Switches Everything You Should Know About PoE Switches for Your Network April 11, 2025 6:00 PM

Switches How to Select the Best Network Switch for You : Managed vs. Unmanaged April 13, 2025 4:23 AM

Switches Discover the Hidden Tricks of Network Switches: Find Your Ideal Switch in Minutes April 14, 2025 3:30 AM

Switches Must-Know Facts About PoE, PoE+, and PoE++: Make the Right Network Switch Choice April 15, 2025 6:30 AM
