Introduction

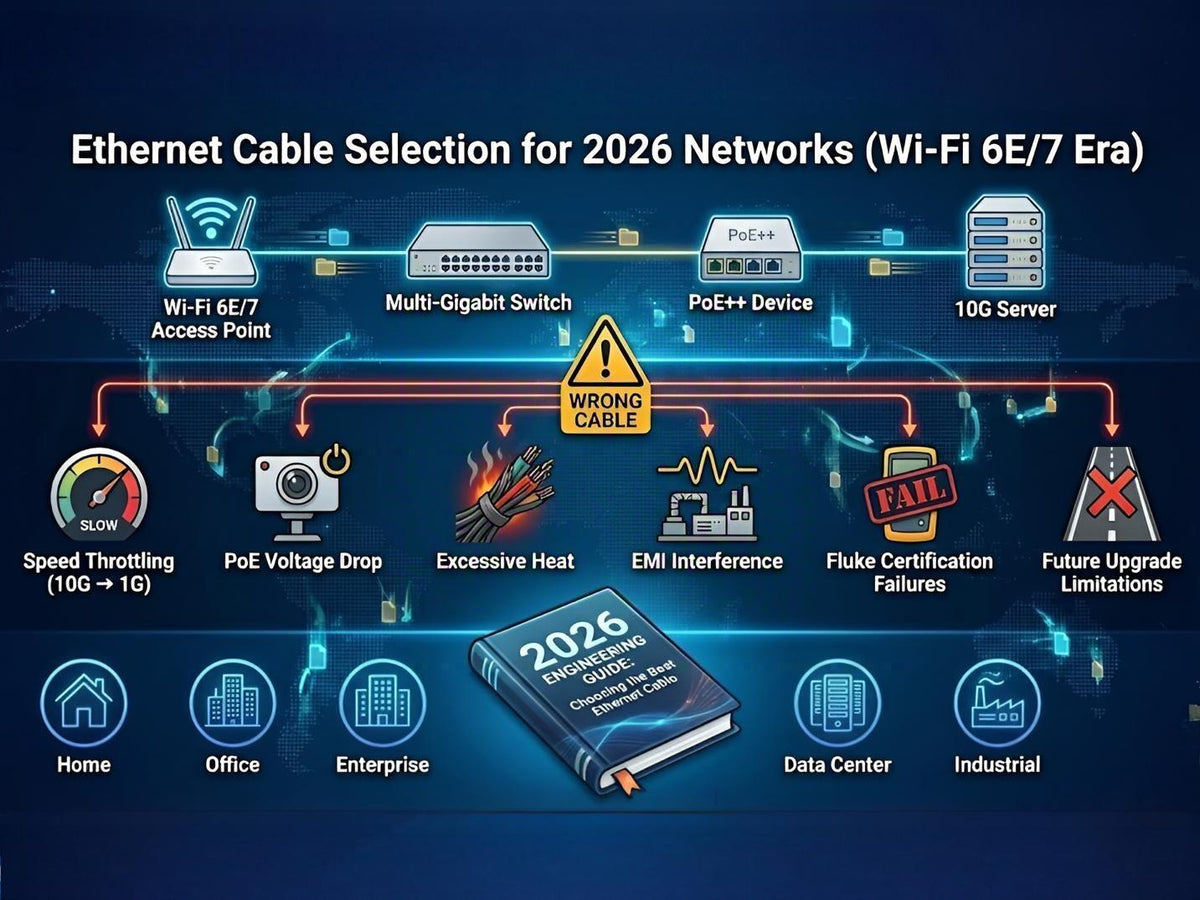

As networks evolve into the Wi-Fi 6E and Wi-Fi 7 era-with multi-gigabit access, high-power PoE++, and 10G aggregation-selecting the right Ethernet cable is no longer a simple matter of "Cat5 vs Cat6." The wrong cable can cause:
- Speed throttling (10G dropping to 1G)
- PoE device rebooting due to voltage drop
- Excessive heat in cable bundles
- EMI interference in industrial environments
- Failures during Fluke certification
- Future upgrade limitations
This 2026 guide provides a complete, engineering-focused approach to choosing the best Ethernet cable for home, office, enterprise, data centers, and industrial networks.
Ethernet Cable Categories: The Foundation of Choosing the Right Cable
Ethernet cables are classified into categories (Cat5e → Cat8), each representing a certified performance level. Here is the real 2026 performance table-updated and corrected beyond FS.com's older data.
1. Ethernet Category Comparison
| Category | Max Speed | Multi-Gig Support | Max Distance | PoE++ Support (90W) | Shielding Options | Best Use Case |
| Cat5e | 1G | 2.5G (short) | 100m | No | UTP | Legacy networks |
| Cat6 | 1G / 2.5G / 5G / 10G@55m | Full | 100m | Limited | UTP / F/UTP | SMB, Wi-Fi 6 |
| Cat6A | 10G@100m | Full Multi-Gig | 100m | Yes, recommended | U/UTP, U/FTP, F/UTP, S/FTP | Enterprise standard, Wi-Fi 7 |
| Cat7 | No IEEE Ethernet standard | Not recommended | - | - | S/FTP | ISO installations only |
| Cat8 | 25G/40G | Rack-level only | 30m | Yes | S/FTP | Data centers (short reach only) |
2026 Key Insight: Cat6A (23AWG) is now the default choice for future-proof enterprise cabling, Wi-Fi 6E/7 access points, and PoE++ deployments.
2. Shielding Types: UTP vs F/UTP vs U/FTP vs S/FTP
Shielding dramatically affects performance in high-noise environments, PoE bundles, and industrial deployments.
Modern ISO 11801 Shielding Structure
| Label | Description |
| U/UTP | No shielding; relies on pair twist for noise suppression |
| F/UTP | Overall foil shield; good EMI protection |
| U/FTP | Each pair individually foil-shielded; ideal for high-density runs |
| S/FTP | Braided overall + foil-shielded pairs; maximum EMI immunity |
| SF/UTP | Dual shielding (foil + braid); industrial environments |
Shielding Recommendations (2026):
- Wi-Fi 6E/7 AP uplinks: F/UTP or U/FTP
- Office LAN: U/UTP is usually enough
- Industrial / factory: S/FTP (must be grounded)
- Data centers: U/FTP or S/FTP for crosstalk control
Cable Craftsmanship: Conductor, AWG, Jacket, and Connectors
Choosing the right category is only half the story-the construction quality of the cable matters just as much.
1. Copper Conductor Type: Never Buy CCA
| Conductor Type | Conductivity | PoE Performance | Safety | Notes |
| OFC (99.99% Copper) | Excellent | Best | Safe | Best for enterprise & PoE++ |
| Bare Copper | Good | Good | Safe | Common standard |
| CCA (Copper-Clad Aluminum) | Poor | Dangerous at PoE++ | Fire risk | Not recommended |
2026 Warning: CCA cables are unsafe for PoE/PoE+/PoE++ and can overheat or melt.
Always use full-copper conductors.
2. AWG (Wire Gauge): Direct Impact on PoE & Distance
| AWG | Resistance | PoE++ (90W) | Flexibility | Use Case |
| 23 AWG | Lowest | Best | Medium | Cat6A horizontal runs |
| 24 AWG | Medium | Good | Medium | Cat5e/Cat6 |
| 26 AWG | Higher | Limited | Flexible | Patch cords |
| 28 AWG | Highest | Not for PoE++ | Very flexible | High-density DC patching |
Rule: PoE++ (high-power cameras, Wi-Fi 7 APs) → choose 23 AWG Cat6A full copper.
3. Jacket Rating & Fire Safety (NEC/IEC)
| Rating | Meaning | Where Used |
| CM | Basic communication cable | General use |
| CMR | Riser-rated | Vertical shafts |
| CMP | Plenum-rated | Air-handling spaces |
| LSZH | Low Smoke Zero Halogen | Data centers, gov, EU |
- CMP required in modern commercial buildings above ceiling tiles
- LSZH recommended for enclosed spaces and international projects
4. Connector Quality (RJ45 Plugs)
- Ideal plating: 50 µm gold-plated contacts
- Poor plating → oxidation → packet loss → intermittent failures
- Shielded jacks required for S/FTP cabling
Fluke Certification Matters (Especially for Cat6A/Cat8)
1. Three Types of Testing
- Patch Cord Test (most strict)
- Channel Test (office LAN)
- Permanent Link Test (horizontal 90m cable)
2. Key Measurement Parameters
- NEXT / PSNEXT
- Return Loss
- Insertion Loss
- ACR-F
- Propagation delay
- Shield integrity
3. Why Cat6A must pass Fluke?
- 10G signals are extremely sensitive to crosstalk
- Poor cables will fail during validation even if they "work" temporarily
- Modern Wi-Fi 7 deployments require reliable 10G uplinks
Real-World Considerations Often Overlooked
1. Length Limits
- 100m total channel
- 90m horizontal + 10m patch cords
- 100m → switch to fiber or PoE extenders
2. Bend Radius
Cat6A = strict
Recommended: ≥ 4× cable diameter
Improper bends → 10G instability or certification failure.
3. Bundling & Heat
Cable bundles trap heat
→ higher resistance
→ more voltage drop
→ PoE++ instability
Follow TIA temperature de-rating guidelines.
4. Color Management
Not just aesthetic:
- VLAN segmentation
- Security zones
- Patch-panel labeling
- Data center operations
Scenario-Based Recommendations
1. Home / SMB Networks
- Cat6 UTP
- If future Wi-Fi 7 upgrade → Cat6A recommended
2. Enterprise Office
- Cat6A U/UTP or U/FTP as mandatory
- PoE++ compatible
- 10G-ready backbone
3. Wi-Fi 6E/7 Deployments
Wi-Fi 7 uplink ≈ 10 Gbps
→ Cat6A (23 AWG, full copper)
→ Shielding optional depending on interference
4. CCTV / Security Networks
- Outdoor cameras: Cat6A shielded
- Indoor PoE cameras: Cat6 or Cat6A
- Long runs → recommend switching to fiber + PoE media converter
5. Industrial Facilities
- S/FTP or SF/UTP fully shielded
- Must be grounded
- Resistant to EMI (motors, transformers)
- Use LSZH or CMR depending on environment
6. Data Centers
- Cat8 only for short (≤30m) ToR/MoR
- Prefer DAC/AOC for 10G/25G/40G/100G
- Copper patching → 26-28 AWG slim cables
The 2026 Ethernet Cable Selection Checklist
Step 1 - Identify required speed
1G? 2.5G? 5G? 10G?
Step 2 - Check PoE level
PoE? PoE+? PoE++ (90W)?
Step 3 - Choose the right category
Home: Cat6
Enterprise: Cat6A
Data center: Cat8
Step 4 - Select shielding
High EMI → S/FTP
Office → UTP
Step 5 - Select AWG
PoE++ → 23AWG full copper
Step 6 - Confirm jacket rating
CMP for plenum
CMR for risers
LSZH for enclosed spaces
Step 7 - Require Fluke Test Report
Vendor must provide real test results.
Why Choose Network-Switch.com?
Network-Switch.com provides:
- Full portfolio: Cat6 / Cat6A / Cat8
- Shielded & unshielded enterprise-grade cables
- 23AWG PoE++-ready cabling
- LSZH / CMP / CMR rated products
- Multi-brand ecosystem: Cisco, Huawei, Ruijie, H3C, NS
- Expert support from CCIE/HCIE/H3CIE engineers
- Fluke-certified cables with full test reports
- End-to-end network design for Wi-Fi 7, CCTV, industrial, and data center deployments
FAQs
Q1: Can Cat6 run 10G reliably for Wi-Fi 7 uplinks?
A: Only up to 55m. For 10G@100m and PoE++, Cat6A is the only recommended option.
Q2: Why is Cat6A mandatory for modern enterprises?
A: Cat6A supports 10G over the full 100m channel and handles PoE++ heat and crosstalk much better than Cat6.
Q3: Can 28AWG slim cables be used for PoE++?
A: No. Their high resistance causes excessive voltage drop and overheating. Use 23AWG horizontal cabling.
Q4: Is Cat7 worth buying in 2026?
A: No. There is no IEEE standard for Cat7 Ethernet. Cat6A or fiber is a better long-term option.
Q5: What is the danger of CCA wire?
A: CCA overheats under PoE loads, has higher resistance, performs poorly at Multi-Gig speeds, and can even be a fire hazard.
Q6: Can I mix shielded and unshielded cables in the same installation?
A: Technically yes, but improper grounding of shielded cables can introduce EMI issues.
Q7: Does Cat5e still make sense in 2026?
A: Only for small LANs up to 1G. For future-proofing, Cat6A is strongly recommended.
Q8: What if my cable runs need to exceed 100m?
A: Switch to fiber or use a PoE extender. Do not exceed Ethernet limits.
Q9: Why do some Cat6A cables fail Fluke certification?
A: Poor shielding integrity, bad termination, improper bend radius, or cheap copper quality.
Q10: Should I use Cat8 for my office?
A: No. Cat8 is for short-range data center patching, not building cabling.
Conclusion
Choosing the right Ethernet cable in 2026 requires more than simply comparing categories. You must also consider:
- Network speed (Multi-Gig / 10G)
- PoE/PoE+/PoE++ power delivery
- Shielding requirements (EMI)
- Conductor quality (full copper)
- AWG, jacket rating, and Fluke certification
- Environment (office, data center, industrial, outdoor)
- Future scalability
For modern enterprise and high-performance networks, Cat6A full-copper cabling remains the gold standard.
