Fiber media converters quietly solve a big, practical problem: they bridge copper Ethernet to fiber and extend links far beyond copper’s reach. In real networks such as campuses, factories, metro POPs converters let you reuse existing switches and still run fiber for long distance, EMI immunity, and lower latency.
But one topic causes constant confusion: single-fiber vs dual-fiber designs. Should you use a single strand (BiDi) or two strands? Do converters need to be used in pairs? Can you mix brands? What wavelengths matter? This guide answers it all with clear diagrams, step-by-step checklists, and field-tested troubleshooting tips.
What a Fiber Media Converter Actually Does
A fiber media converter takes an Ethernet signal on copper (RJ-45) and converts it to an optical signal on fiber, or vice versa. There are also fiber-to-fiber versions that translate between different fiber types, wavelengths, or distances.
Common families support 10/100/1000 Ethernet and 10-Gigabit Ethernet. In short, media converters extend distance and adapt media without replacing your switches.
Why they’re used
- Distance: single-mode links can run tens of kilometers; multimode typically covers hundreds of meters to ~2 km depending on optics.
- Noise immunity: fiber is immune to electromagnetic interference.
- Budget & simplicity: you can keep existing copper gear and upgrade the link where you need it most—the cable run.

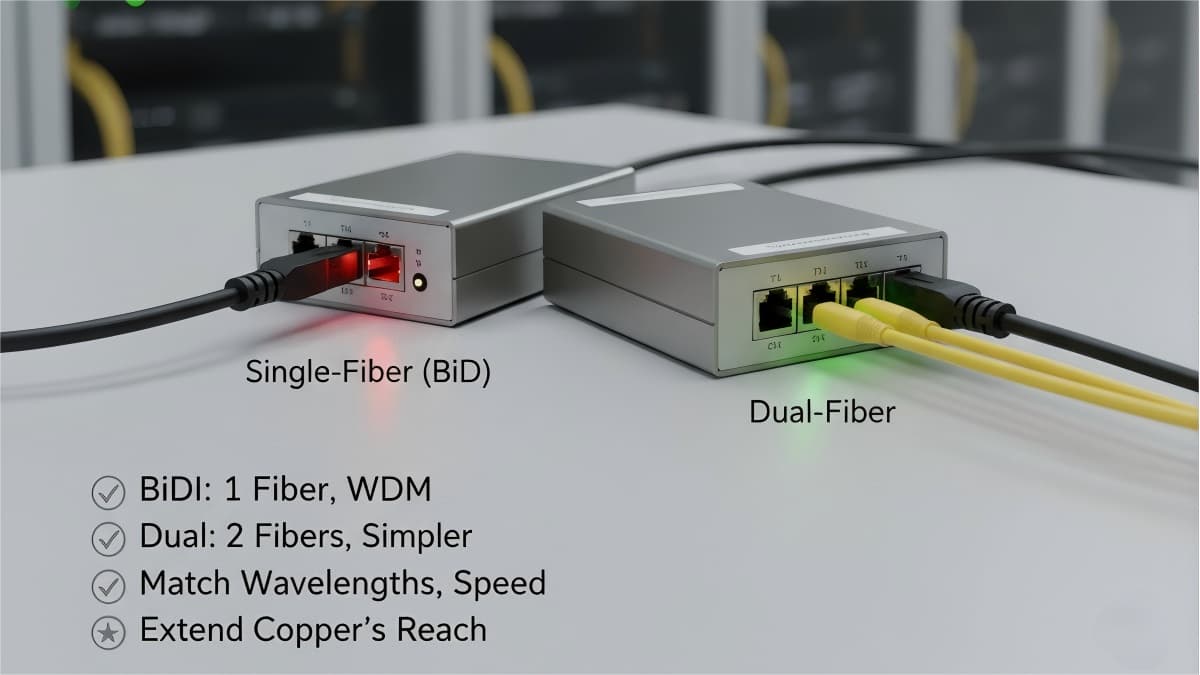

Two Physical Models: Dual-Fiber and Single-Fiber (BiDi)
Dual-Fiber Converters (Two Cores)
- Use two fibers: one dedicated to TX, the other to RX.
- Both sides transmit and receive at the same wavelength (common values: 850 nm MM, 1310 nm/1550 nm SM).
- The front panel is usually labeled TX and RX, and you cross-connect TX→RX, RX→TX with a duplex patch cord.
Single-Fiber Converters (One Core, BiDi)
- Use one fiber strand for both directions simultaneously.
- Achieve this with WDM (wavelength division multiplexing): each end transmits and receives on different wavelengths over the same strand.
- You must deploy A/B ends as a matched pair. For example:
End A: TX 1310 nm, RX 1550 nmEnd B: TX 1550 nm, RX 1310 nm
Other BiDi pairs exist (e.g., 1490/1550 nm). The key is opposite directions use opposite wavelengths, so A must face B—AA or BB will not work. - End A: TX 1310 nm, RX 1550 nm
-
End B: TX 1550 nm, RX 1310 nm
Other BiDi pairs exist (e.g., 1490/1550 nm). The key is opposite directions use opposite wavelengths, so A must face B—AA or BB will not work.
Quick wavelength reality check
Real product datasheets show exactly these BiDi pairs (1310/1550, 1490/1550) shipping today across 2 km, 40 km, 60 km, even 80 km variants.
Do Converters Have to Be Used in Pairs? Can I Mix Brands?
Short answer: Usually yes, you use them in pairs, but the “pair” can be a media converter on one end and a fiber switch (or SFP in a switch) on the other, as long as both sides speak the same speed, wavelength, and optical mode.
For BiDi single-fiber links, you still need A/B wavelength pairing across ends (converter↔converter or converter↔BiDi SFP). Cross-brand interop is common if the optics and Ethernet standards match.
Match these 5 things for interop
- Ethernet speed/duplex (10/100/1000/10G)
- Optical wavelength(s) (e.g., 1310/1550 BiDi)
- Fiber type & distance (MMF/SMF; budget vs reach)
- Optical interface type (simplex LC for BiDi, duplex LC for dual-fiber)
- Protocol framing/standard (IEEE 802.3 family; avoid proprietary encapsulations)
Single-Mode vs Multimode in Converter Links
- Single-mode (SMF) is the long-haul champion (10+ km is common, much longer with the right optics).
-
Multimode (MMF) is great for short-to-medium building runs; distances vary by OM grade and transceiver type.
For many campus and metro use cases, a single-mode BiDi pair is extremely attractive because it halves fiber usage, critical where duct space is tight or existing fiber counts are limited. (Look for the BiDi “A/B” SFP pair or BiDi-capable converters.)
Single-Fiber vs Dual-Fiber: Side-by-Side Comparison
| Dimension | Single-Fiber (BiDi) | Dual-Fiber |
| Fiber cores used | 1 strand | 2 strands |
| Wavelength plan | A/B pair (e.g., 1310/1550, 1550/1310) | Same λ in each direction (duplex) |
| Patch lead | Simplex LC | Duplex LC |
| Fiber savings | 50% less fiber | Standard consumption |
| Planning risk | Must match A↔B ends; mismatches cause no link | Simpler: TX↔RX cross connect |
| Typical reach | From 2 km to 80 km variants exist | Similar reach options per optic type |
| Cost tradeoff | BiDi optics can cost more per end | Optics and cords are commodity |
| Best when | Fiber is scarce or ducts are full | Simplicity and familiarity matter |
How to Connect: Step-by-Step
Dual-Fiber Converter ↔ Dual-Fiber Converter
- Power both units; set speed/duplex (if manual).
- Use a duplex patch: TX→RX, RX→TX across ends.
- Verify FX/Link LEDs on both sides turn solid.
- Plug copper RJ-45 to your switch/host; Link/Act LEDs should light.
- Run a ping/iPerf test end-to-end.
Single-Fiber (BiDi) Converter A ↔ Converter B
- Confirm you have A and B units (or the BiDi A/B SFP pair).
- Use a simplex patch: connect A to B on the same strand.
- Check FX/Link LEDs. If dark, swap A/B or verify wavelengths.
- Validate traffic with ping/iPerf.
Converter ↔ Switch SFP
- If the switch has an SFP slot: insert the correct duplex SFP (for dual-fiber) or BiDi SFP (for single-fiber).
- Match speed and wavelength to the converter’s optics.
- Test for Link and pass traffic.
Common LED indicators
- PWR: power good.
- FX LINK/ACT: fiber link up / activity.
- TP LINK/ACT (or ETH LINK/ACT): copper link up / activity.
-
FDX/100/1000: speed/duplex.
(Some platforms add ALM/LOS for alarms or loss-of-signal.) Vendor-specific guides detail exact LED names and colors, but the logic above is universal.
How to Choose?
Wavebands & Pairing Cheat Sheet
| Link Type | Connector | Typical λ plan | Notes |
| Dual-Fiber (SMF) | Duplex LC | 1310 nm both ways (or 1550 nm both ways) | TX↔RX cross connect |
| Dual-Fiber (MMF) | Duplex LC | 850 nm both ways | OM grade affects reach |
| Single-Fiber BiDi (SMF) | Simplex LC | A: TX 1310 / RX 1550 ↔ B: TX 1550 / RX 1310 | A/B must face each other |
| Single-Fiber BiDi (SMF) | Simplex LC | A: TX 1490 / RX 1550 ↔ B: TX 1550 / RX 1490 | Long-reach variants exist |
Buying Guide: What to Check Before You Order
- Speed: 10/100/1000? 10G? Make sure both ends match. Media converters typically support copper Fast/GigE and fiber GigE, with 10G options in higher-end models.
- Fiber type & distance: SMF vs MMF, and the reach you need (e.g., 10 km, 40 km, 80 km).
- Single-fiber vs dual-fiber: If fiber is scarce, choose BiDi; otherwise use duplex.
- Wavelength(s): For BiDi, order A/B correctly; for duplex, ensure both sides use the same λ.
- Connector type: Simplex LC for BiDi, duplex LC for dual-fiber.
- Environment: Industrial temp, DIN-rail, DC power, or PoE passthrough if needed.
- Management: Unmanaged is simple; managed adds loop prevention, alarms, link-fault pass through, port stats, etc.
- Brand interoperability: Mixing brands is fine if the five interop items (speed/λ/fiber/connector
Troubleshooting: From “No Link” to “Clean Pass”
| Symptom | Likely Cause | What to Do |
| Fiber LINK LED off | Wrong fiber type or λ; A/B reversed (BiDi); TX not crossed | Verify SMF/MMF; check A/B pairing; for duplex, confirm TX↔RX |
| Copper LINK LED off | Copper autoneg mismatch; bad patch | Force speed/duplex if needed; swap cable |
| Intermittent drops | Dirty endfaces; marginal power budget | Clean connectors; shorten patch; consider higher power optics |
| Good link, poor throughput | Duplex mismatch; errors on one side | Set both ends to auto or match duplex; run iPerf and check error counters |
| Only one direction works (BiDi) | A↔B wavelengths mismatched | Swap ends or reorder correct A/B |
Pro tip: Always inspect & clean connectors. Single specks of dust on the ferrule can raise loss by several dB.
Field Checklist
- Measure exact distance and note fiber type (SMF/MMF).
- Decide single-fiber BiDi vs dual-fiber (based on fiber availability).
- Choose speed (10/100/1000/10G) and wavelength plan.
- For BiDi, order A/B correctly; for duplex, plan TX↔RX cross.
- Verify connector type (simplex LC vs duplex LC).
- Check environmental (temp, power, PoE) and mounting needs.
- Prepare test kit (cleaners, scope, power meter, iPerf host).
- Label both ends with speed/λ/fiber type/A-B info.
- Document LED states and test results after turn-up.
- Keep spare A/B SFPs or an extra converter pair for rapid swap.
Frequently Asked Questions
Q1. Do fiber media converters have to be used in pairs?
A: Typically yes, but one end can be a switch SFP (or fiber port) instead of another converter. What matters is matching speed, wavelength, fiber type, connector, and Ethernet standard.
Q2. What’s the difference between single-fiber (BiDi) and dual-fiber converters?
A: BiDi uses one strand via WDM and requires A/B ends with opposite wavelengths. Dual-fiber uses two strands (TX and RX on separate fibers) with the same wavelength both ways.
Q3. Can I mix brands?
A: Yes, if you match speed, λ plan, fiber type, connector, and protocol. Cross-brand interop is common in standards-based Ethernet.
Q4. Which wavelengths are common for BiDi?
A: 1310/1550 and 1490/1550 are widely available from multiple vendors, covering 2–80 km variants.
Q5. How far can a converter link go?
A: Depends on optics. Single-mode can go tens of kilometers with the right transceivers; multimode is shorter (hundreds of meters to a few kilometers). Check the optic’s data sheet.
Conclusion
Fiber media converters remain a simple, reliable way to push Ethernet beyond copper’s limits and adapt to real-world fiber plants. Whether you choose single-fiber BiDi for fiber savings or dual-fiber for simplicity, the fundamentals are the same: match speeds and wavelengths, plan your connectors, and keep optics clean.
