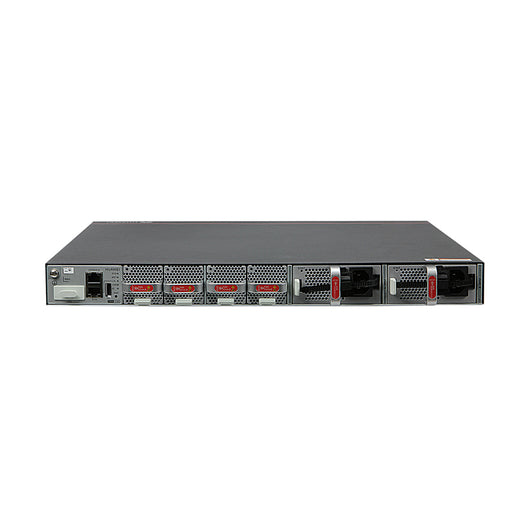

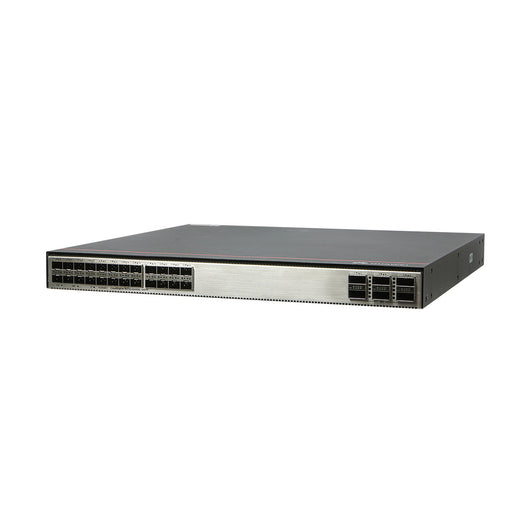

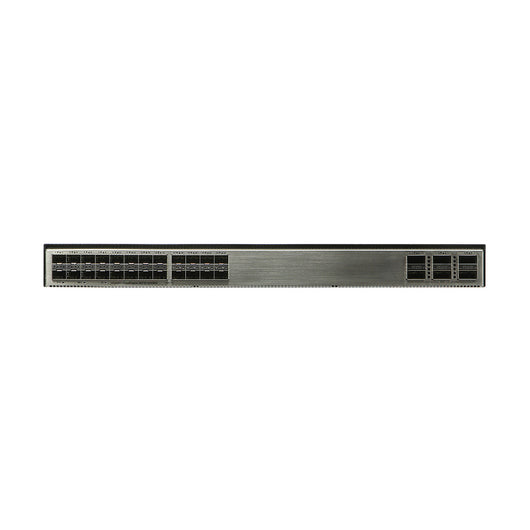

Huawei CloudEngine S6730-S24X6Q Switch Overview
The Huawei CloudEngine S6730-S24X6Q is a high-performance Layer 3 switch designed for enterprise campus networks and data centers. It offers 24 10GE SFP+ ports and 6 40GE QSFP+ uplink ports, providing high-density 10G access and 40G uplink capabilities. With a switching capacity of up to 2.4 Tbps and forwarding performance of 490 Mpps, this switch ensures efficient data handling. It supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Highlights
-
Port Configuration: 24 × 10GE SFP+ ports and 6 × 40GE QSFP+ uplink ports.
-
High Performance: Switching capacity of up to 2.4 Tbps and forwarding rate of 490 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, and IS-IS for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| QSFP-40G-SR4 | QSFP+ Transceiver | 40GBASE-SR4 QSFP+, 850nm, multimode fiber, up to 100m |
| QSFP-40G-LR4 | QSFP+ Transceiver | 40GBASE-LR4 QSFP+, 1310nm, single-mode fiber, up to 10km |
| CAB-SFP-1M | SFP+ Cable | 1-meter SFP+ direct attach copper cable |
| CAB-QSFP-3M | QSFP+ Cable | 3-meter QSFP+ direct attach copper cable |
| CAB-QSFP-5M | QSFP+ Cable | 5-meter QSFP+ direct attach copper cable |
Comparison with Similar Items
| Feature | S6730-S24X6Q | S6730-H24X6C | S6730-H48X6C |
|---|---|---|---|
| Downlink Ports | 24 × 10GE SFP+ | 24 × 10GE SFP+ | 48 × 10GE SFP+ |
| Uplink Ports | 6 × 40GE QSFP+ | 6 × 40GE QSFP+ | 6 × 40GE QSFP+ |
| Switching Capacity | 2.4 Tbps | 2.4 Tbps | 2.4 Tbps |
| Forwarding Rate | 490 Mpps | 720 Mpps | 960 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Power Supply | Dual AC/DC | Dual AC/DC | Dual AC/DC |
| Ideal Use Case | High-density access | High-performance aggregation | Large-scale aggregation |
Specifications
| Parameter | Specification |
|---|---|
| Model | S6730-S24X6Q |
| Downlink Ports | 24 × 10GE SFP+ ports |
| Uplink Ports | 6 × 40GE QSFP+ ports |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | 490 Mpps |
| MAC Address Table | 288K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Dual hot-swappable AC/DC power modules (600W each) |
| Power Consumption | Typical: 88W; Maximum: 225W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 9.7 kg (21.38 lbs) |
| Warranty | Limited lifetime warranty |
